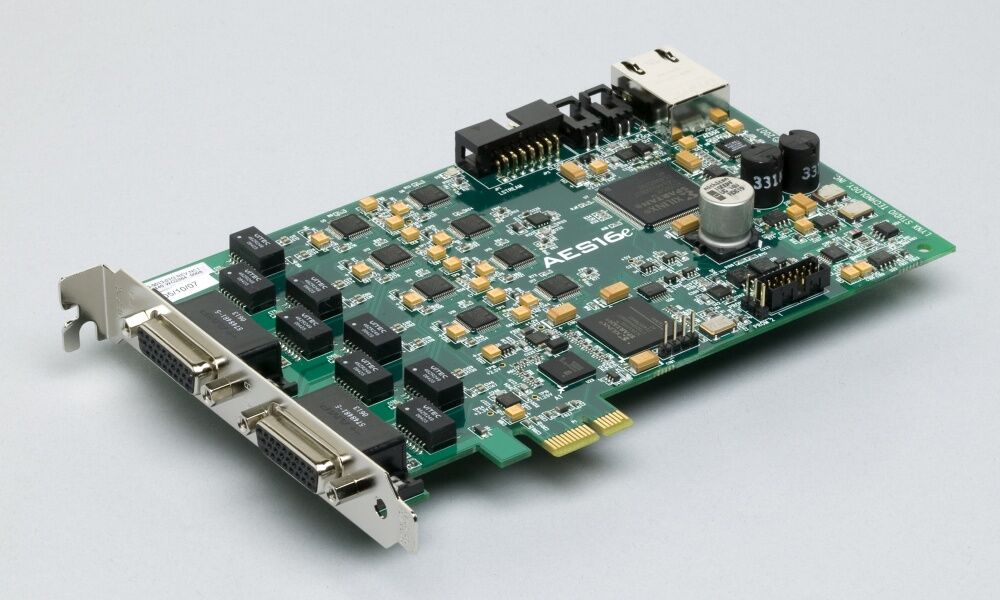

LYNX STUDIO TECHNOLOGY AES16e-SRC

LYNX STUDIO TECHNOLOGY AES16e-SRC

AES16e with sixteen channels of sample rate conversion

AES16ESRC

£905.67 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



Key Features:

  • Eight stereo inputs and eight stereo outputs (16 mono I/O), AES/EBU format, 24-bit, single wire and dual wire, transformer coupled
  • Optional sixteen channels of Sample Rate Conversion. Support for conversion ratios up to 16:1 with 144 dB dynamic range and -140dB THD+N.
  • Extensive on-board digital mixer
  • Optional AES50 interface
  • All relevant settings, such as sample rate selection, sync source selection, channel routing, and buffer size are enabled, controlled and monitored from the host computer
  • Multi-channel support of 5.1 and 7.1 surround playback formats
  • Includes Lynx-exclusive SynchroLock™ sample clock generator for 3000:1 jitter rejection on external clock sources
  • Supports ASIO and WDM for Windows and CoreAudio for Mac OS X
