GLENSOUND MinFerno without Talkback Buttons

Single Commentators Box For Dante Audio Networks

MINFERNO-0

£1,550.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



MinFerno is a new smaller and even easier to use version of Glensound’s exceptionally popular Inferno network audio commentary box.

MinFerno is designed for a single commentator/ announcer to use and like its big brother the Infeno provides the very best possible commentary microphone amplifier and compressor limiter circuit for amazing on air sound.

The Inferno is easy to use for Commentators who would rather be talking about the game than working out how the equipment works, and is also built to Glensound’s exacting rugged & robust standard to make it a reliable piece of broadcast equipment for the busy engineer.

Redundant Powering Options
The MinFerno can be powered from any of 3 different sources:
1) PoE on the Primary CAT5 Network link
2) PoE on the Secondary CAT5 Network link
3) External 12V DC

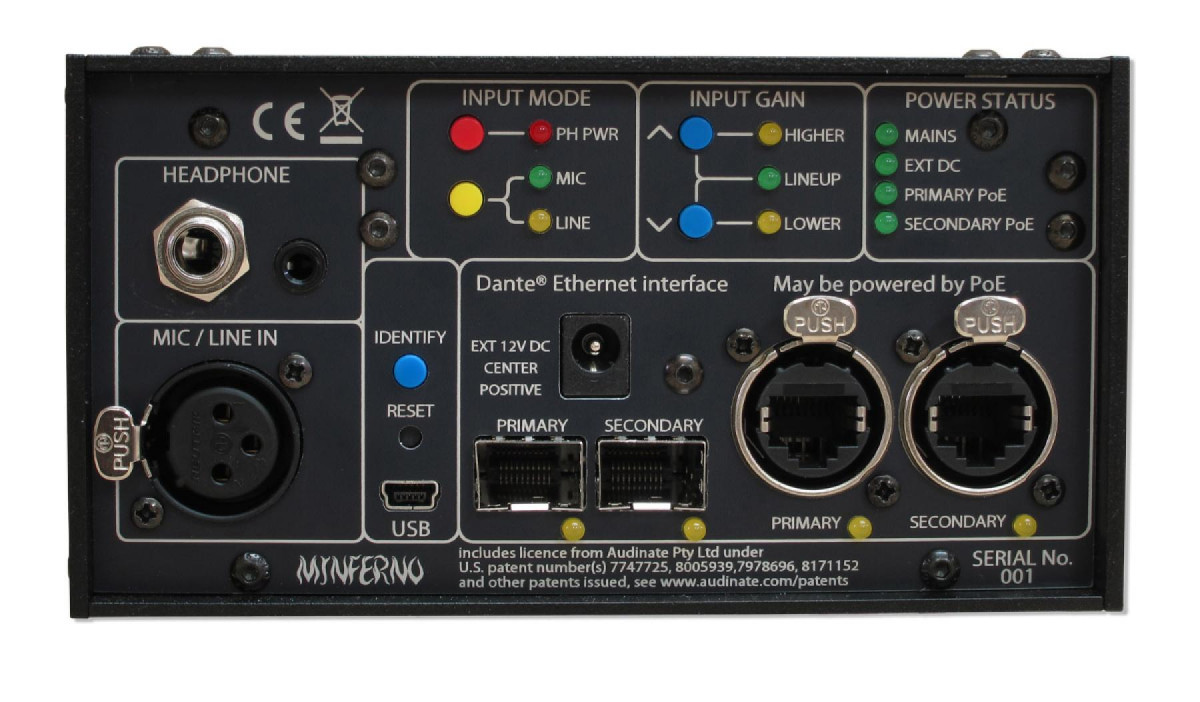

Four off rear panel LEDs show the availability of the 3 power sources.

Primary & Secondary SFP Slots
The SFP (Small Form-Factor Pluggable) fibre slots are standard networking ports that accept standard SFP modules. This means that you decide what type of fibre and connector style you want to use just by the SFP module that you insert. The primary & secondary network circuits allow for glitch free redundancy across both the Fibre & Copper network interfaces.

Primary & Secondary Copper Network Connections with PoE
Two CAT6 connections on Neutrik Ethercons (that accept standard networking cables) are provided to allow copper connections to local network switches to carry the Dante®/ AES67 audio. Two connections are fitted to allow redundant circuits to be used if required.
Both these connectors can accept a PoE power source for providing the power to the Inferno.

Input Mode & Gain
One pair of push buttons selects the input type of the front panel XLR to be either microphone, line or microphone with 48V phantom power. 3 LEDs indicate which input mode is selected.
Two push buttons are used to alter the gain of the iput. LEDS indicate if the gain setting is above or below Glensound’s pre-configured ‘lineup’ levels. The front panel PPM of course provides an accurate indication of the input level.
The gain can also be altered remotely by a web browser pointing at the MinFernos web page.

Audio Volume Control
Volume control for incoming audio circuits from the Dante®/ AES67 network. This is normally used for such sources as mixed programme or cue.

Sidetone Volume Control
Front panel rotary headphone volume control is ‘sidetone’. Sidetone is the commentators’ own voice in their own ears.

Headphone Routing
Headphone volume controls have an associated left ear, right ear, both routing switch located next to the volume knob. This single push button switch routes the associated source to just the left, just the right or both channels of the stereo headphone amplifier.
To enable the commentator to know how they are routing a circuit the first time a routing switch is pressed a pair of LEDs on the front panel indicate its current routing arrangement. The next time the routing switch is pressed then the next routing option is selected.

Robust Mic on Button
The large bright illuminated button for programme switch route the outgoing microphone circuit onto the Dante®/ AES67 network audio circuits. The operation of this switch (momentary, latching etc) can be fully configured via the web page.

(* Versions of the MinFerno with Three, two, or one talkback buttons are also available.)

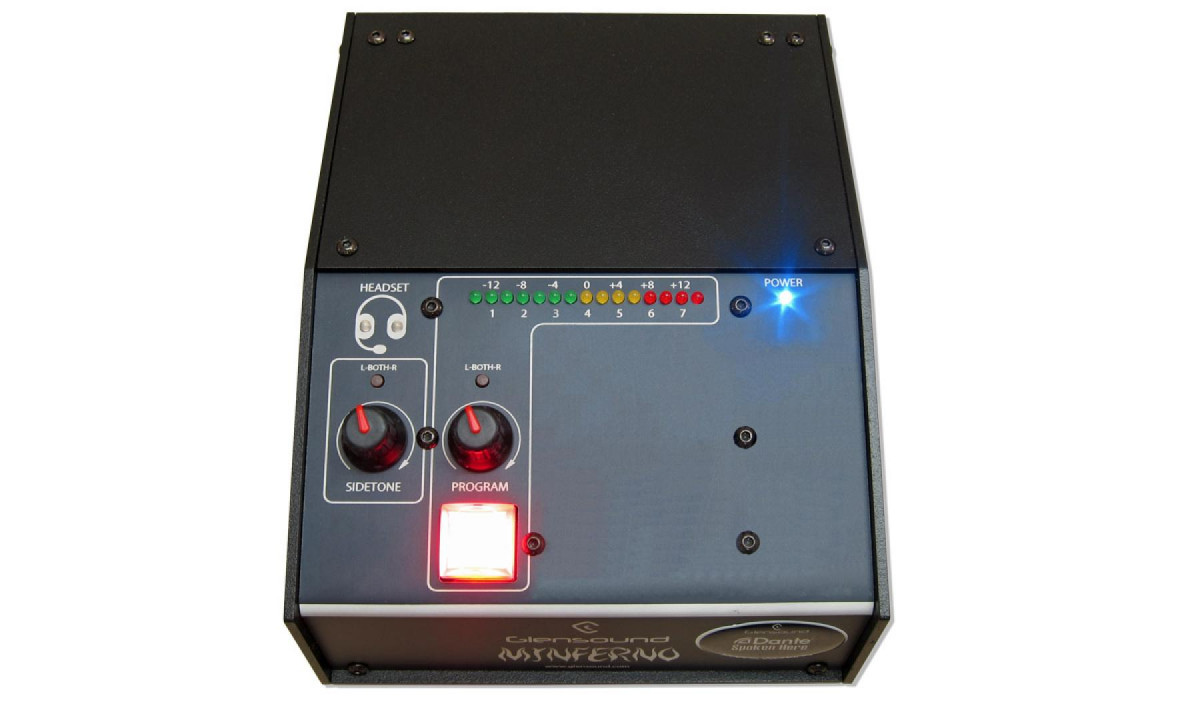

15 segment LED PPM Meter
Audio input level is indicated on the 15 segment PPM meter.

Low Noise Microphone Amplifier With Remote Gain
We spent a long time optimising the performance of the THAT corporation microphone amplifier used in the original Inferno and used again on the MinFerno. It features very low noise & distortion circuit that we remote control the gain of in 1dB steps, which allows us to provide the remote webpage gain control as well as the rear panel gain push buttons. We also optimised the circuits to allow correct source impedance switching depending on whether the input has been set as a mic or line input.

Referee Compressor Limiter
As with all Glensound’s commentary units the Inferno features their very popular Referee compressor limiter circuit. This circuit starts to compress the commentator’s voice gradually and slowly increases the compression ratio as the input level becomes overly high resulting in a very natural sounding and distortion free audio output capable of taming even the loudest of commentators.

High Quality Analogue To Digital Converter (ADC)
Dante®/ AES67 network audio is a digital circuit and as such the best analogue microphone amplifier would be wasted if we hadn’t paired it up with the best analogue to digital converter. The ADCs job is fairly simple when if you look at Glensound’s tech spec you’ll see that they’ve made theirs work incredibly well.

Unique Headphone Amplifiers
The commentator’s headphones are a vitally important tool so Glensound’ take as much care their our headphone amplifiers as with their on air microphones. Glensound’s unique headphone amplifier provides the correct output level regardless of the impedance of the attached headphones, meaning that broadcasters can now pick and choose between low impedance ‘cheap’ headphones and high impedance traditional broadcast ones.
