GLENSOUND GS-HA013

Headphone Amplifier

GS-HA013

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

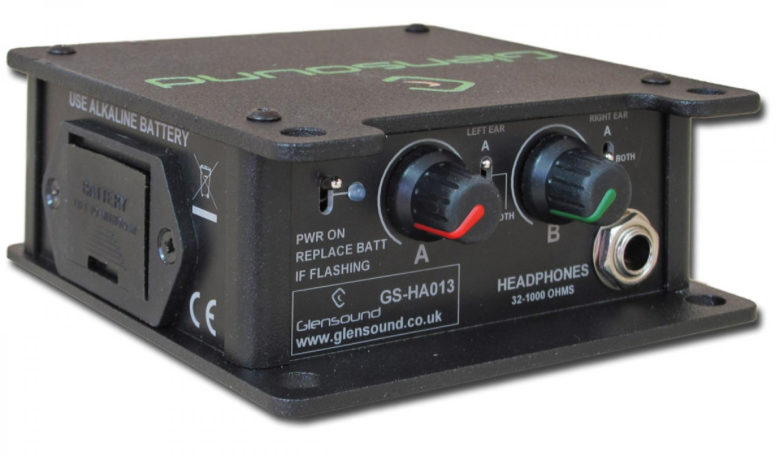

The GS-HA013 l is small, robust and economical. It provides 1 off headphone amplifier in a compact format.

It builds on the successful GS-HA001 and adds switches to allow each input to be routed to the left ear, right ear, or both.

A toggle switch turns the unit on/off and a bright blue LED indicates that the unit is on and flashes when the battery is getting low.

Audio input is on 2 XLRs normally feeding left & right channels of the headphone amp. A switch is provided to allow an unbalanced stereo signal input on just 1 off these XLRs to be feed to both channels of the headphone amp.

A phase reverse of the right ear facility is provided (operation by a small toggle switch).

2 off headphone jack connections are provided (in parallel) each connector is suitable for use with both A and B gauge jack plugs.



Features include

  • Powered from 1 x PP3 long life battery
  • External DC power input
  • On/off switch
  • Blue power on LED Compact size with belt clip
  • 2 balanced inputs on rear panel XLRs
  • 1 input switchable to unbalanced stereo
  • Input gain controls
  • Seperate left/right headphone gain controls
  • Phase reverse right ear switch
  • 2 x Headphone jacks 6.35mm (A/B gauge)
  • 1 x Headphone jack 3.5mm
  • Headphone impedances of 32 – 1000 ohms
  • Each input can be switched from left ear, right ear, or both

Media

Manual (432.33 KB)
()
