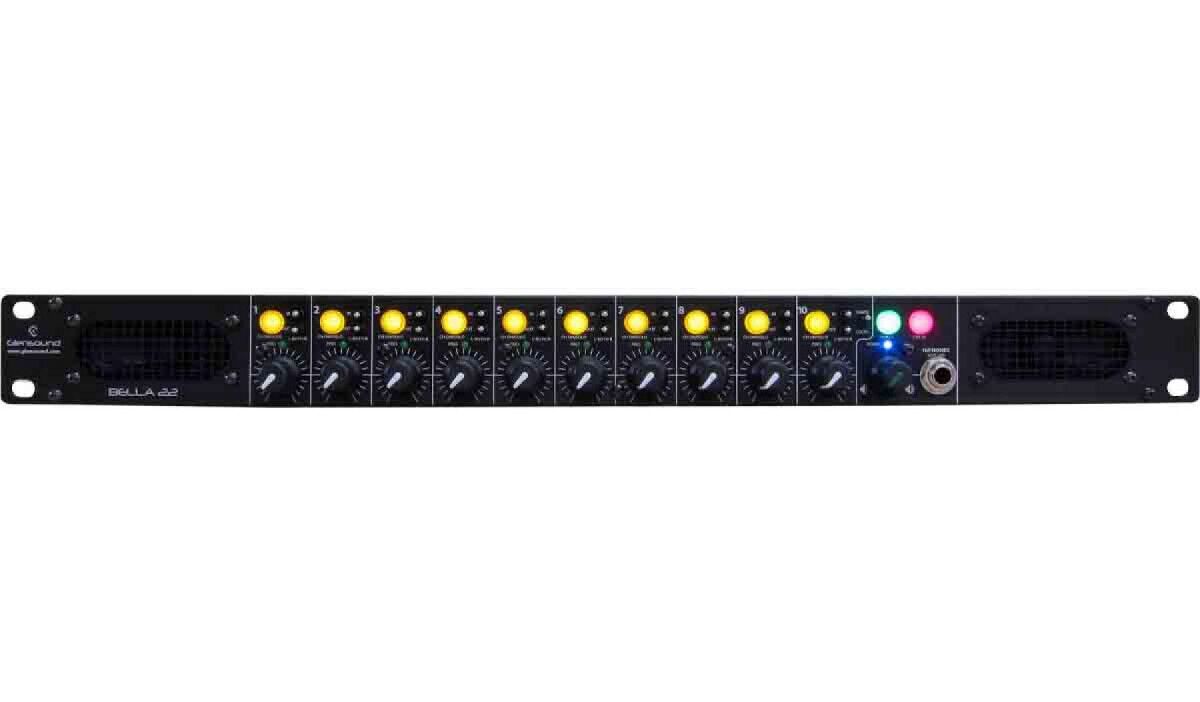

Bella 22 mkII is a 2 buss summing matrix confidence monitor designed for outside broadcast trucks, studios, theatre and professional audio applications. It is perfect for easy and cost effective monitoring of multiple network audio sources, ideal for busy production environments and perfect for monitoring multiple network intercom & programme feeds.

The 2 front panel loudspeakers are driven from a DSP to compensate for their size.  The result is surprisingly good, with clear crisp vocals and highly intelligible reproduction of wider band audio sources. They are driven from a class D amplifier and have more than sufficient output level for most environments. The MKII units have improved drive units over the original Bella 22

Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.

Features

• Confidence Monitor
• 20 Network AoIP audio inputs
• 2 analogue audio inputs
• Dante/ AES67 compliant
• 32 Network AoIP outputs
• 3 analogue audio outputs
• 1 x AES3 audio output
• 10 input level controls
• Input select switches
• Output routing switches
