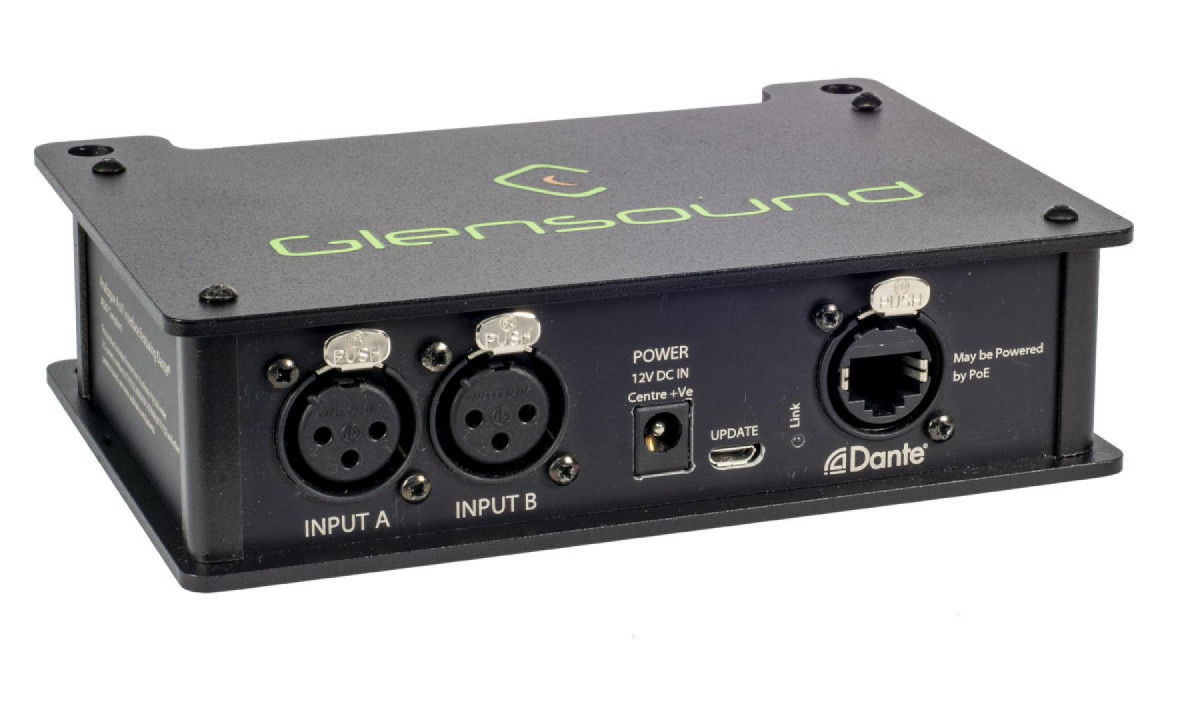

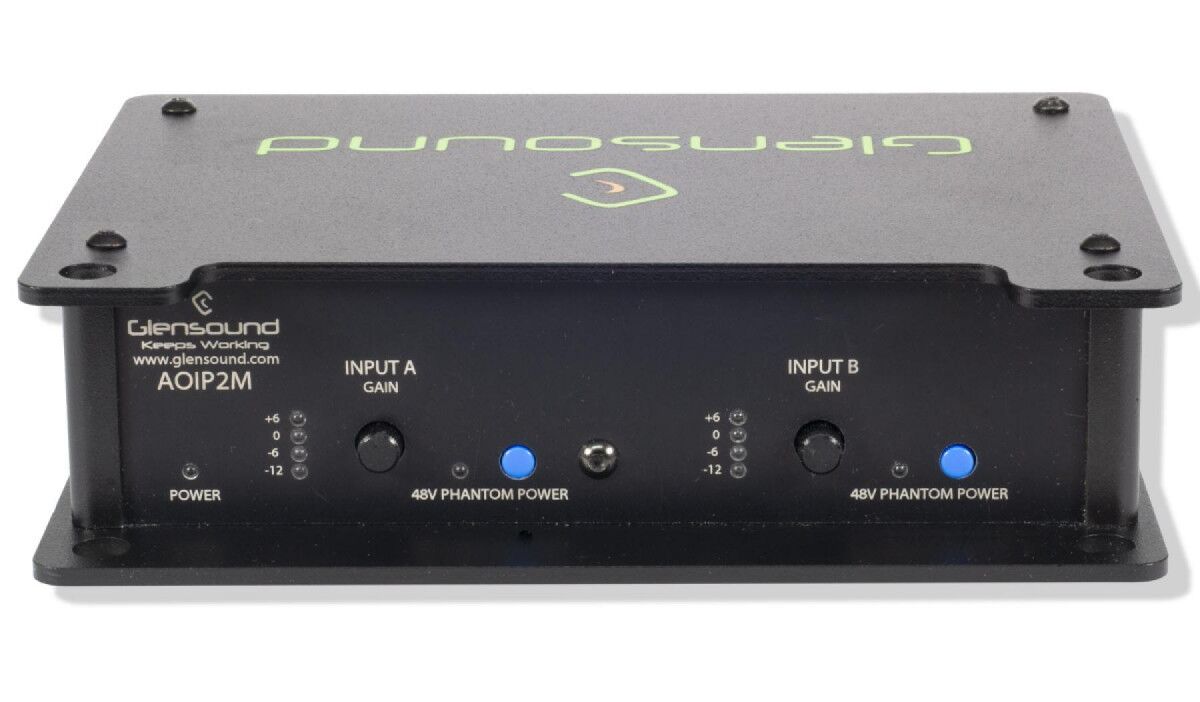

AoIP2M is packaged in small & rugged format and designed for outside broadcast, theatre and location applications. It has 2 microphone inputs with 48V phantom power switch and gain control. Designed to easily and quickly interface in to the Dante Network. PoE power means that only a single cable is needed to connect to the network to carry both audio and power. Robust construction with a simple interface. The network can operate from 44.1-96 kHz using Dante, or 48kHz on AES67.

Key Features

• The AoIP2M provides 2 balanced microphone inputs on to the Dante®/ AES67 audio network
• Simple PPM meter allows easy input level adjustment
• Switchable Phantom power
• Fixing holes in the top and bottom plates. This allows temporary fixing with cables ties or a more permanent solution with bolts or screws.
