GENELEC 9320A

Reference Controller

9320A

£1,040.83 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

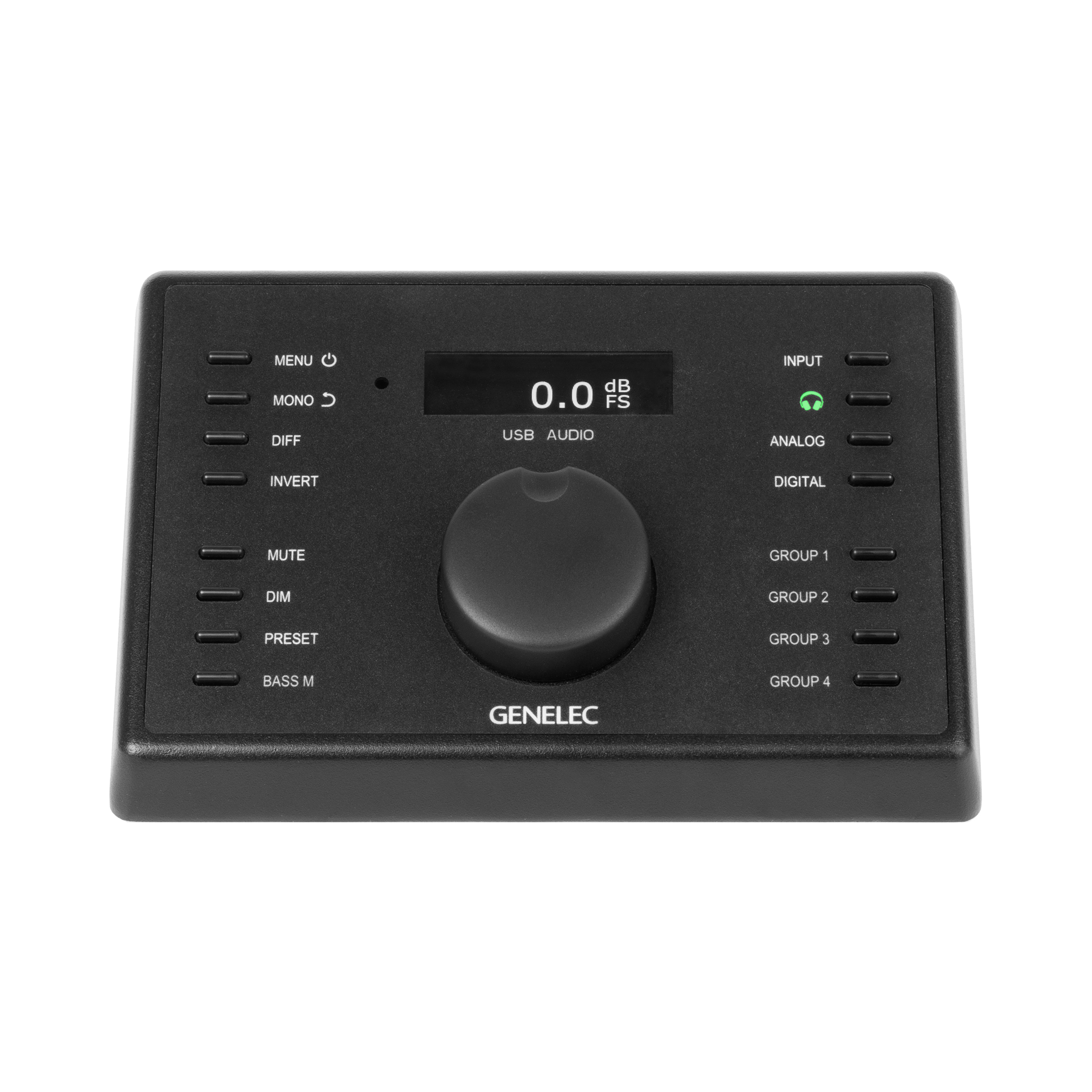

The 9320A Genelec SAM™ Reference Controller is a Smart Monitoring Device designed to serve as a hub for integrating key monitoring technologies, namely loudspeaker-based monitoring and headphone based monitoring. The 9320A is compact and can be confidently placed on a desk or the top of a mixing console, while also providing excellent mobility and essential connectivity for use in various improvised environments.

The 9320A can control up to three separate monitoring systems plus headphones, and each system can operate at a calibrated listening level, according to EBU R128, ATSC A/85 or SMPTE RP200 standards. While the 9320A can support any active loudspeaker system – such as one or two ALT stereo sets – it crucially provides instant one-click access to a vast number of extra monitor control features built into Genelec’s Smart Active Monitoring family.

The reference-grade headphone output of the 9320A features excellent linearity and dynamic range, and allows users to combine their choice of professional quality headphones with the latest Aural ID 2.0 headphone plug-in. Users can therefore experience accurate, reliable and completely personal headphone monitoring while simultaneously measuring sound exposure, to ensure safe listening.

Additionally, the 9320A allows integration with any DAW or audio interface, and with its analogue, AES/EBU and USB connectivity, the 9320A can connect directly to stereo monitoring systems (with and without subwoofer), providing monitor control and doubling as a high quality A-D and D-A converter for both monitors and headphones.





Tactile monitor control from stereo to immersive

Management of scalable Genelec Smart Active (SAM) Monitoring systems
With tactile control of key functionality in Genelec Loudspeaker Manager (GLM™) software, the 9320A provides an intuitive, quick-to-access physical user interface with clear haptic feedback – allowing you to speed up your workflow and hide the graphical user interface of GLM, so you can retain focus on your DAW.
Easy management of alternative monitoring systems in one room
Having GLM control at your fingertips enables fast switching and management of in-room SAM Monitoring layouts, while the 9320A also provides level alignment and standard control of directly connected stereo monitoring systems. This simplifies movement between monitoring options and allows you to fully trust what you hear. Working with any DAW and audio interface system, the 9320A – with GLM – can handle an unlimited channel count for SAM Monitoring systems. And alternative stereo loudspeaker monitoring is easily connected using in-device AES/EBU and analogue inputs.
Intelligent one-button switching for seamless in-room and headphone monitoring
The 9320A also provides level alignment for headphone monitoring, meaning it’s able to switch from any of your monitoring systems to another without a level change. This gives you smooth and easy switching between all loudspeaker and headphone-based monitoring, without the need to readjust the monitoring level each time.

AES/EBU connectivity for the purest signal path

Versatile in-device monitoring options

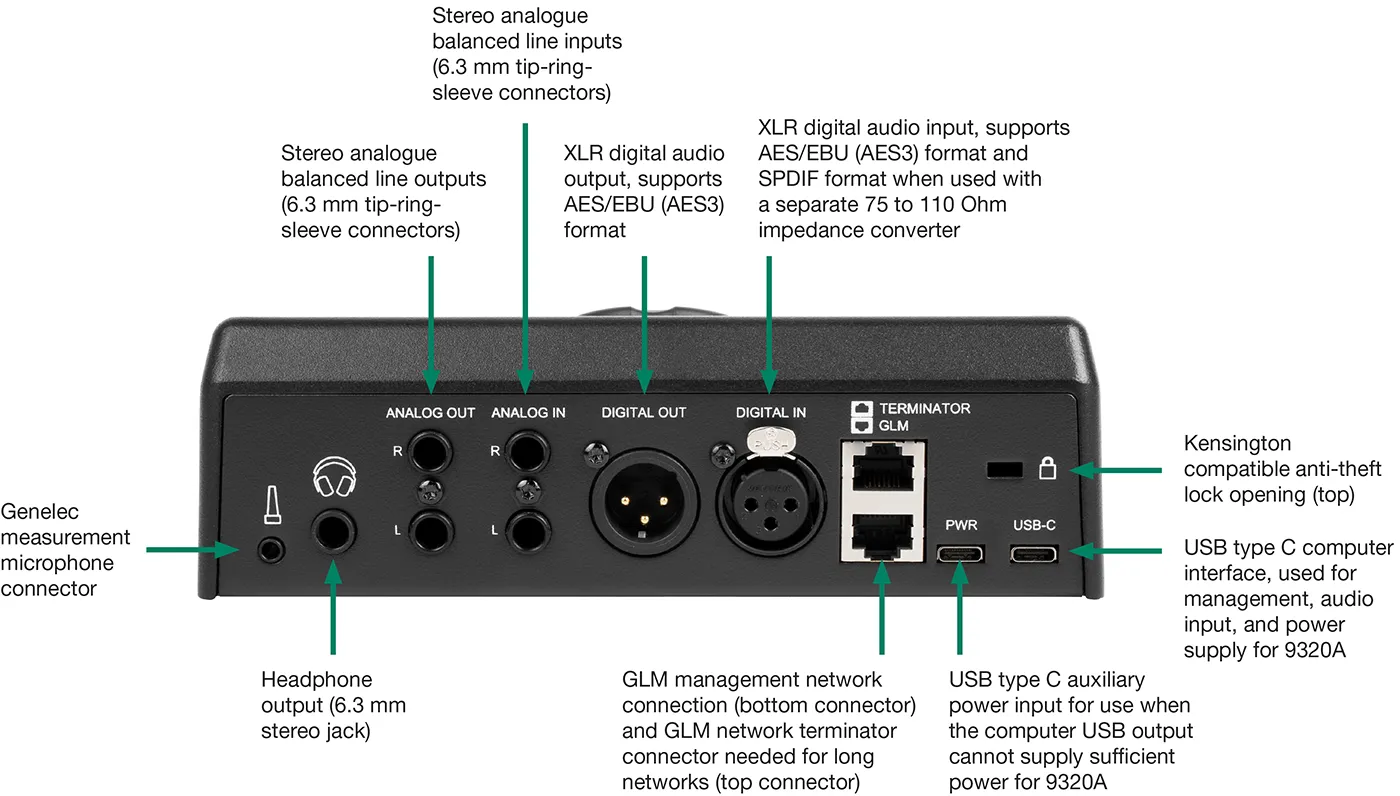

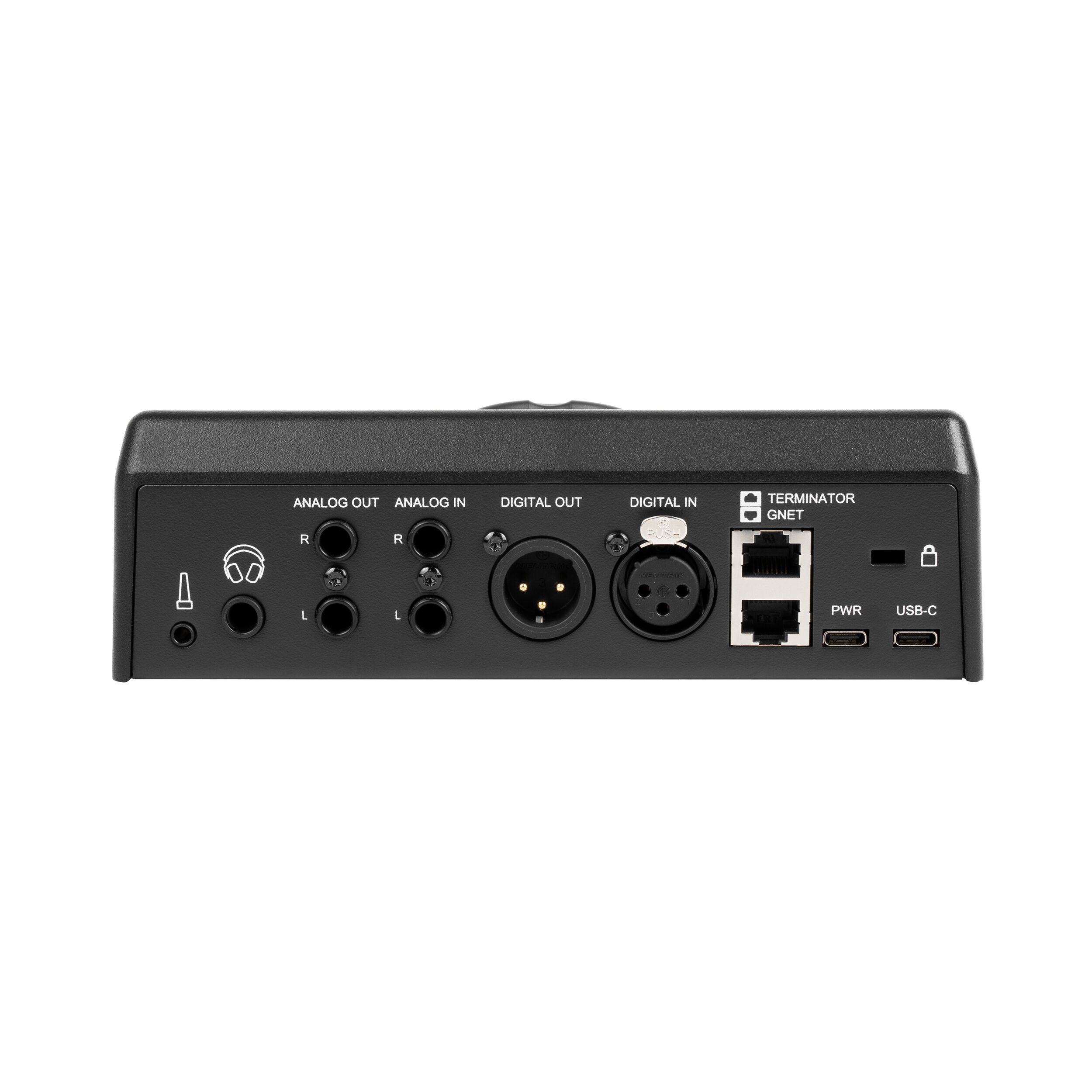

Stereo and stereo-with-subwoofer monitoring systems can be directly connected to the 9320A using its analogue and AES/EBU input/output connectivity, while the 9320A can also be used as a USB output interface for high resolution stereo audio input from a computer. The 9320A outputs support both fixed line level output in ‘SAM’ mode and adjusted line output. Both modes are available over its balanced analogue outputs and AES output. This makes the 9320A compatible with any professional loudspeaker monitor or headphone sets.
High-quality DAC conversion of signal
It’s also possible to use the 9320A as a high-quality converter from analogue inputs to AES out and from AES to analogue outputs – as well as converting USB audio input to any output. This makes it hugely versatile – and an extremely effective hub for professional monitoring tasks. The maximum level of the analogue balanced line input can be set to +12 dBu or +24 dBu. The USB audio and AES digital audio inputs to AES digital output offer an A-weighted dynamic range of 138 dB.



Reference grade headphone output

Professional headphone monitoring
Personal headphone sound character calibration is a natural part of the 9320A as a device for reference level listening. The headphone output can handle headphone impedances ranging from 16 to 600 ohms, with excellent linearity (THD+N less than -110 dB) and dynamic range (126 dB), offering a maximum RMS output of 6 volts – for access to the best possible performance from any high-quality professional headphones.
Enhanced headphone monitoring using Aural ID™ Technology
Genelec Aural ID Technology enables access to obtain and use your unique personal HRTF data to render reliable stereo, multichannel and immersive monitoring layouts with accurate virtual loudspeaker positioning and out-of-the-head externalised reproduction – using any high-quality professional headphones. Aural ID integrates perfectly with the headphone output of the 9320A, for the highest possible standard of headphone monitoring

Speaker calibration with GLM & calibrated listening level

Automatic GLM AutoCal™ calibration
GLM software works with Genelec Smart Active (SAM) Monitoring systems to enable neutral, carefully aligned audio reproduction over loudspeaker monitors – with correctly calibrated and equalised subwoofer support as needed – and access to detailed GRADE™ Room Acoustic Reports. For this, a factory-calibrated reference microphone is included with the 9320A.
Alignment of all monitoring options
The 9320A offers reproduction level alignment across all loudspeaker-based monitoring layouts and headphones, for the smoothest possible transitioning between loudspeaker and headphone-based monitoring.

Safe listening – Noise dose estimation

Hearing health support during monitoring
Continuous A, C and Z weighted SPL monitoring, shown on the backlit display of the 9320A, allows quick assessment of listening safety. SPL is sampled using the included reference microphone for in-room audio and calculated using headphone sensitivity data for the headphone audio. The audio engineer sound exposure dose is logged, and hearing health exposure dose alarms can be easily set.  Combined with the ability to create highly linear monitoring systems – which naturally support minimal hearing fatigue – these features make the 9320A a key ally for hearing protection.
