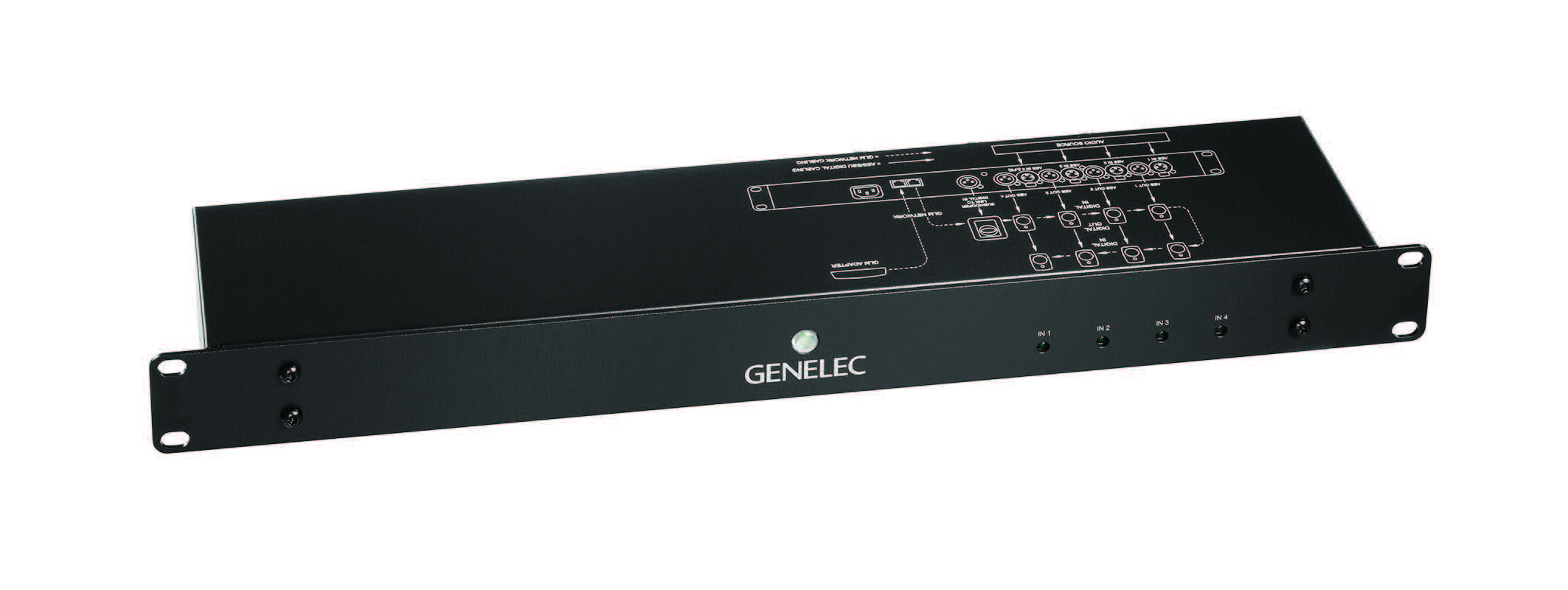

GENELEC 9301A AES/EBU

Multichannel Interface

9301A

£615.83 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



The Genelec 9301 AES/EBU Multichannel Interface allows 7.1 channels digital audio sources to be connected to 7300 Series Smart subwoofers.

The Genelec 9301A AES/EBU Multichannel Interface has been designed to expand the 7300 Series Smart subwoofers AES/EBU stereo inputs and outputs to 8 channels of AES/EBU inputs and outputs.

With the 9301A in the signal path, all 7.1 or 8 channels digital audio configuration become possible. With its 7.1 digital audio input and its single XLR subwoofer output link, all possible digital audio source, be it stereo or multichannel, can be seamlessly connected to Genelec 7300 Series Smart subwoofers to cover all possible professional digital audio applications.

Technical Specifications:

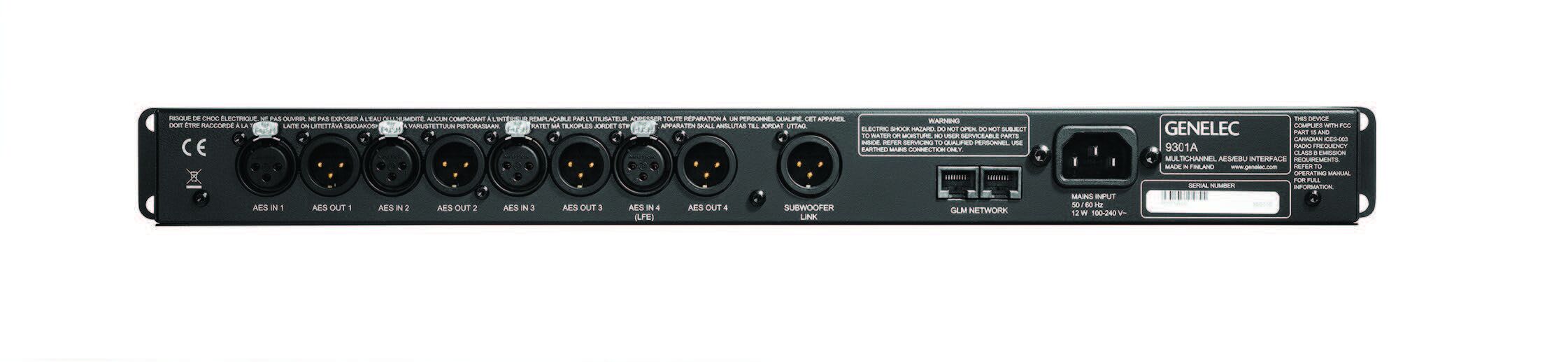

  • 7.1 channels XLR digital audio inputs and outputs
  • 1x XLR subwoofer output link
  • Digital audio format: AES/EBU (AES3)
  • Word length: 16…24 bits
  • Sample rate: 32…192 kHz
  • Inputs are sample rate converted
  • (H x W x D): 43 x 483 x 105 mm or, 1 11/16 x 19 x 4 1/8 inch
  • Weight: 2 kg / 4.4 lb



Media

Manual (2.78 MB)
