64×64 Pro Tools | HD and dual Thunderbolt 3 audio interface with 16-ch Line I/O 32×32 Dante connectivity


£3,041.66 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

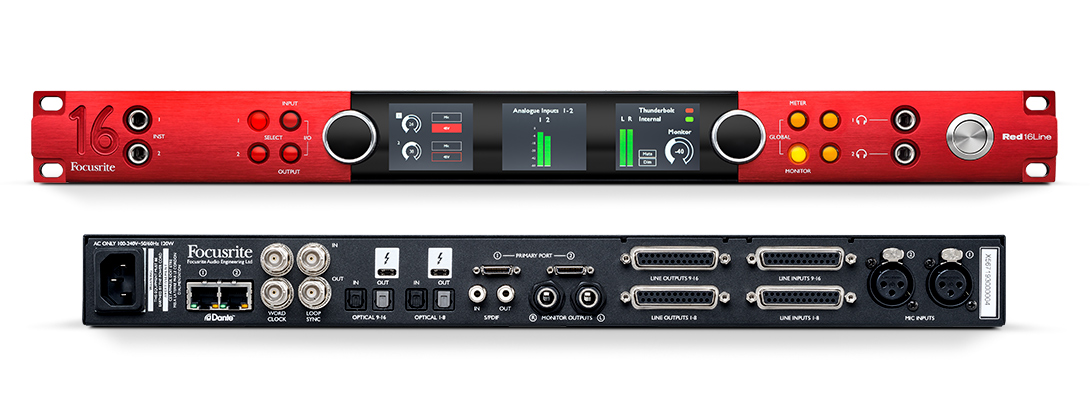

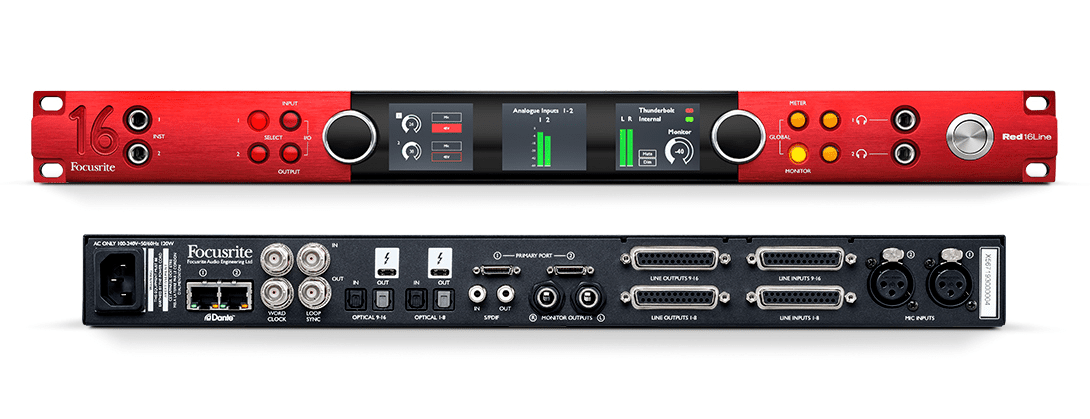

Red 16Line is a 64-in/64-out Pro Tools | HD and dual Thunderbolt 3 audio interface with ultra-low latency A-D/D-A conversion, Red Evolution mic preamps, up to 121dB dynamic range, ultra-low round trip latency, and expansion over Ethernet for networked audio. Since Red 16Line provides both DigiLink™ connectors and Thunderbolt connections, it’s now easier than ever to switch from Pro Tools | HD to a second DAW, without the need to reconfigure option cards in the interface. Simply change the host mode either in the remote control software, or on the device front panel and change DAWs in seconds.

Key Features

  • Connect to Pro Tools | HD, Thunderbolt computers and Dante simultaneously without option cards
  • High-performance audio conversion with over 118dB dynamic range A/D and 121dB dynamic range D/A (A-weighted)
  • Ultra-low round trip latency to track through plug-ins and record virtual instruments in real time
  • 16 line inputs on D-sub, coupled with 16 line outputs and two main monitor outputs
  • Two digitally-controlled Red Evolution mic preamps with up to 63dB of ultra-clean gain, stereo linking, individual phantom power, high-pass filter and phase reverse
  • Air mode on the preamps, giving recordings the clarity of a transformer-based ISA
  • Two Thunderbolt 3 ports as standard to connect additional Thunderbolt products
  • Dual-port Dante card for more channels at higher sample rates
  • Three LCD displays for highly accurate level metering
  • Focusrite Control software mixer for setting up monitoring and routing configurations, with remote control of preamps
  • Two discrete high-fidelity headphone outputs
  • Connect multiple digital sources using word clock I/O and loop-sync I/O
  • Two instrument inputs on the front panel
  • AAX/AU/VST-compatible Red 2 and Red 3 EQ and compression plug-ins
