FERROFISH A32 PRO DANTE

32 Channel AD/DA Multi-Format Converter and Router

A32PRO-DANTE

£3,107.50 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

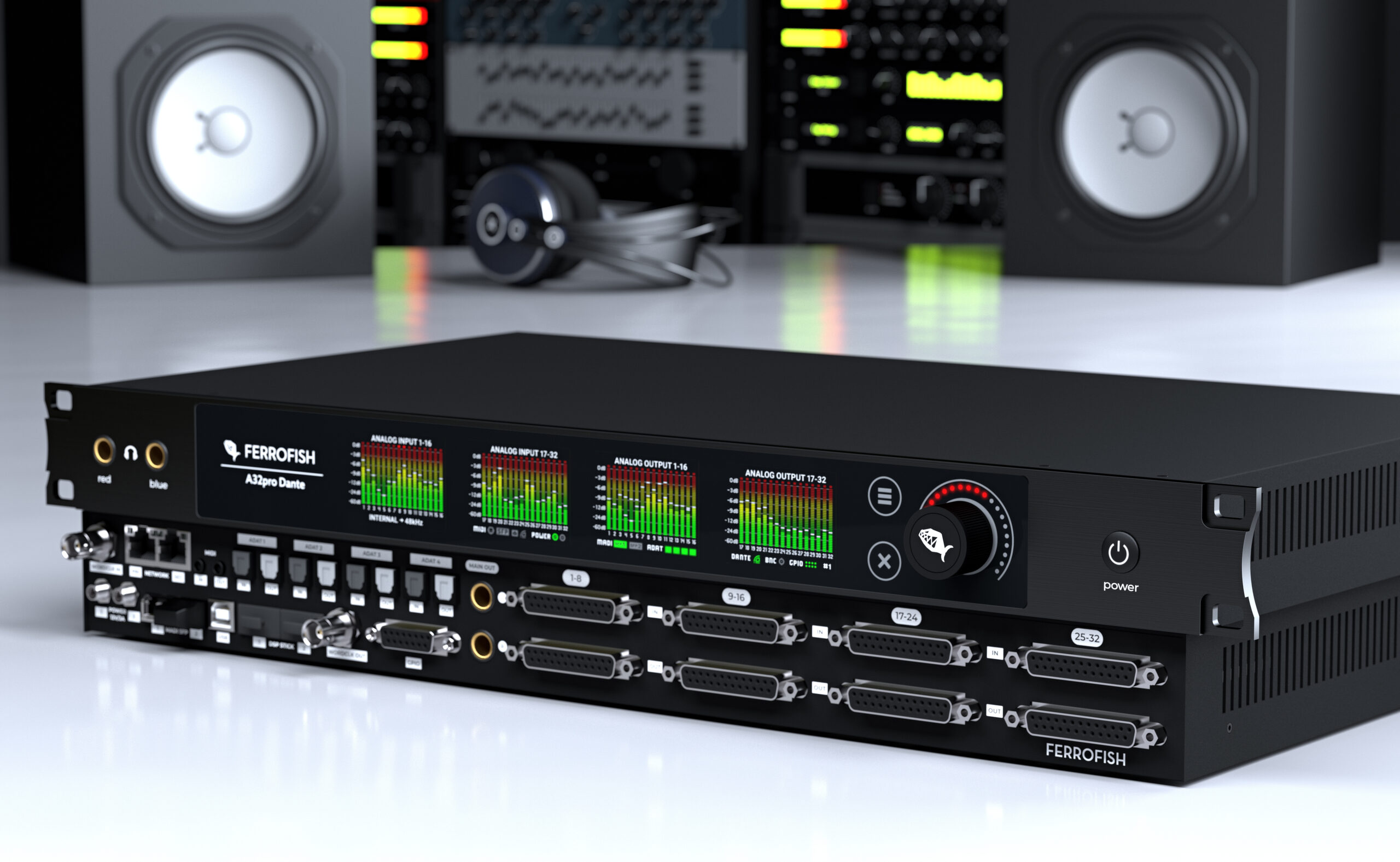

The Ferrofish A32pro Dante is the latest in a long line of professional AD/DA converters from German pro audio manufacturer Ferrofish.

Continuing the company’s successful tradition of designing high-quality, cost-effective AD/DA converters for studio, live audio and broadcast production, the A32pro Dante is the natural successor to the popular Ferrofish A32 and A32 Dante models, packing more functionality than ever before into a single 1U frame.

In addition to the completely revised front-panel design, the four TFT screens and highly-intuitive operation of previous models are now supplemented by a touch-screen interface and large encoder knob. Changes to device settings can be made directly from the front of the unit simply by tapping the functions – it couldn’t be easier!

Packed with analogue and digital audio features, the Ferrofish A32pro Dante is an incredibly flexible and space-saving tool, offering up to 32 analogue inputs and 32 analogue outputs in only 1U of rack-space! Two independent headphone outputs (and an additional TRS stereo output) offer further flexibility for monitoring and routing in recording studio, live audio and broadcast applications.

Redundant MADI and power supplies (optional) provide important fail-safe options -especially useful in live operations. Powerful on-board routing also allows for format conversion between the different digital interfaces, and the new DSP-STICK slots provide an upgrade-path for planned future DSP-based expansions.



32 x 32 A-D/D-A Conversion with ESS
The Ferrofish A32pro Dante features the latest generation of converter chips from ESS, for high quality sound recording and audio playback. In addition, a stereo TRS Main Out delivers a simple and fast way to connect stereo monitors or recorders.



Dual Headphone Outputs

With the Ferrofish A32pro Dante, Ferrofish say they’ve ‘broken the Highlander rule of “there can be only one”‘, doubling the number of headphone outputs. Both headphone outputs are driven by TPA6120A from Texas Instruments, with adjustable gain stages for headphones and IEMs of various impedances. The Highlander would be envious – if he owns headphones.



Intuitive TFT Touchscreen User Interface

Combining the highly intuitive user interface of the A32pro Dante with a large, multi-touch overlay covering all four high-res TFT screens, control of the A32pro Dante couldn’t be easier.



GPIO Port – Remote Control & Monitoring

The newly added GPIO port allows remote control of important parameters of the A32pro Dante via simple electronic signals, whilst simultaneously providing monitoring of device statuses at any time.



Modular Expansion Ports

For the highest possible degree of flexibility, the MADI I/Os have been designed as a dual SFP slot bay for a maximum of 256 I/O channels. The SFP slots can accommodate both optical and coaxial SFP modules.

A dual QSFP slot bay is also available for future expansion modules.



Remote Control via USB, MIDI, MADI and GPIO

The Ferrofish A32pro Dante provides a variety of remote control options, ensuring maximum flexibility for a wide range of professional audio applications.



Software Control with RemoteFish (Mac/PC)

Full remote control of the Ferrofish A32pro Dante is available via USB, MIDI, or MIDI over MADI via the RemoteFish software application, available as a free download for both Mac and PC.

RemoteFish provides an extended user interface for control over all input and output gains, channel routing, settings adjustments, and the saving and loading of presets.



Key Features

• Latest generation ESS A/D and D/A converter chips with 192kHz and 24Bit data path

• Highly intuitive four screens multitouch user interface

• Illuminated touch sensitive high-res encoder

• Flexible routing matrix

• MIDI-over-MADI

• Dedicated dual headphone monitoring matrix

• Dual power input redundant system with monitoring and alert system

• SHARC DSP for internal signal processing

• Dual expansion slots for optional DSP sticks

• Simple MIDI CC mode for remote control by simple MIDI commands

• Remote controllable via RemoteFish app for Mac & Windows (USB, MIDI, MIDI over MADI and Dante), or via GPIO

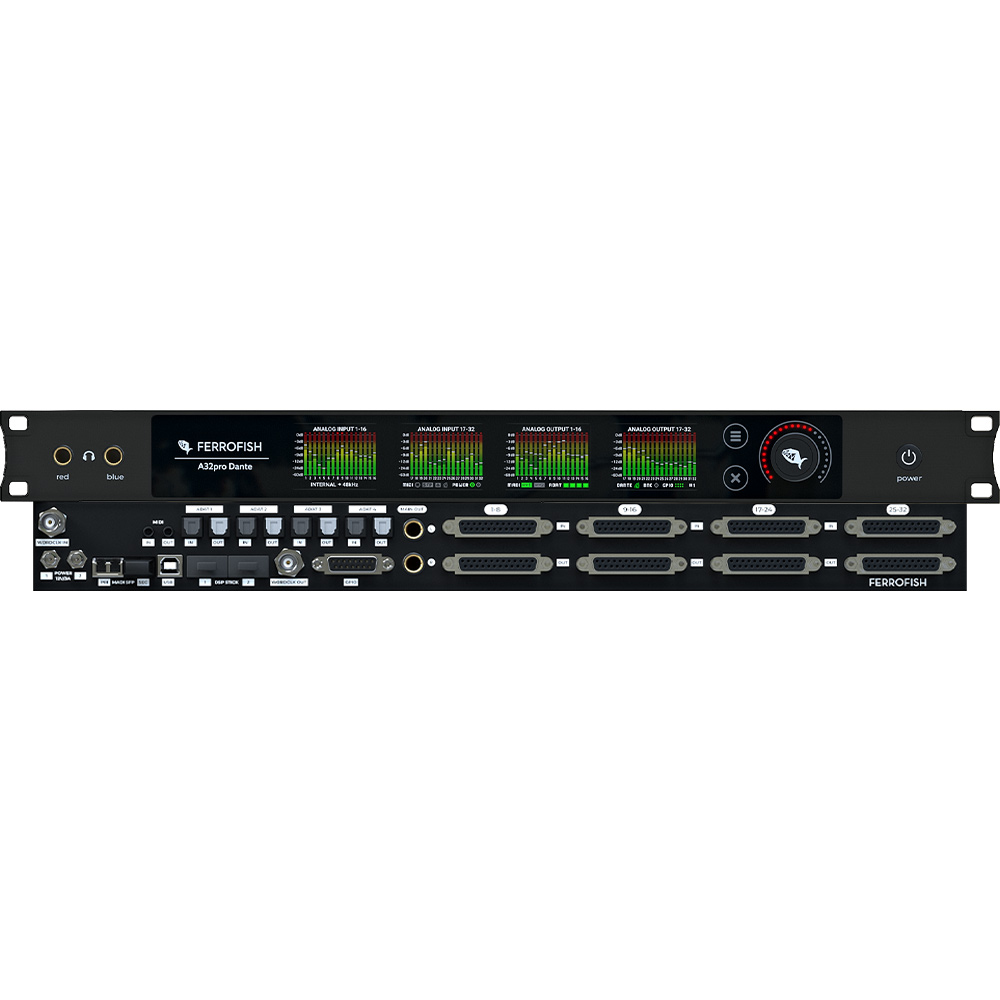

Connections

• 32 x 32 analogue I/O channels, fully balanced on DSub25 (Tascam pinout)

• 32 x 32 ADAT I/O channels on TOSLINK jacks with 96kHz support

• 64 x 64 MADI I/O channels on LC SFP* module, user exchangeable, coax SFP module option available (*Standard version included multi mode fibre SFP. A32 PRO DANTE SM with single mode SFP also available)

• 64 x 64 DANTE I/O channels on dual Ethernet ports with redundant functionality

• Wordclock I/O on BNC connectors with proprietary jitter reduction circuit

• MIDI I/O on 3.5mm TRS connectors (MIDI 2.0 pinout)

• GPIO port for remote preset switching and alert monitoring on DSub15

• Dual stereo headphone 1/4″ TRS outputs with high-end amp modules and dedicated DAC
