DYNAUDIO LYD 48 (Right)

The latest addition to the LYD series: the 3-way LYD 48

DYN-LYD48-B-R

£890.83 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

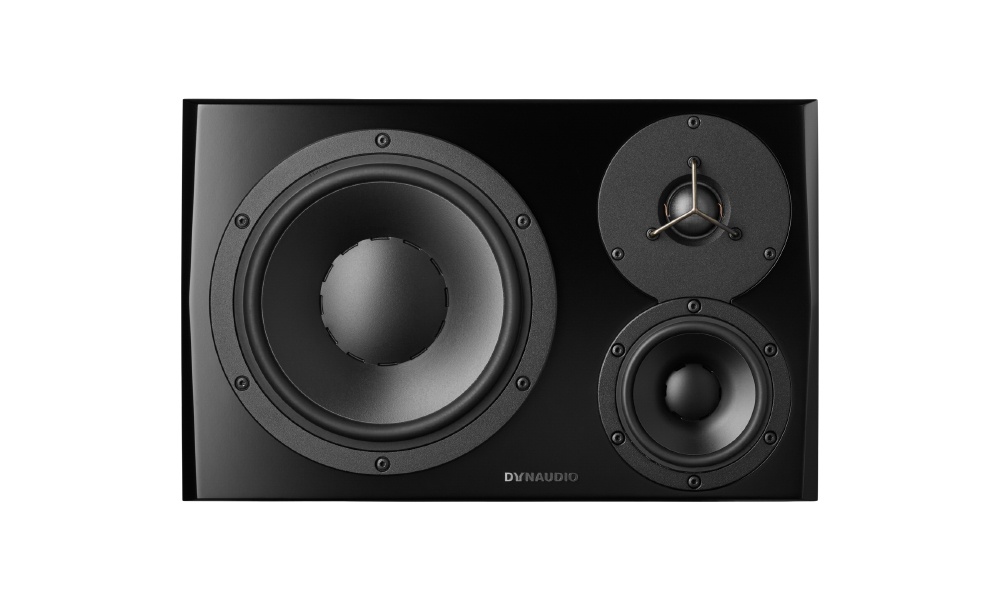

The 3-way LYD monitor. With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere – with unmatched accuracy at any volume level.

This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP.

Specification

  • Max SPL (1m, pair): 112dB
  • Principle: Bass reflex
  • Crossover Frequencies: 460Hz / 5.5kHz
  • Tweeter: 1inch Soft dome
  • Midrange: 4inches
  • Woofer: 8inches
  • Dimensions (W x H x D): 369 x 234 x 328mm
  • Weight: 12kg
  • Sensitivity (85dB @ 1m, free field):
  • +6dB: 50mV
  • 0dB: 100 mV
  • -6dB: 200 mVSpecification sheet for LYD part 1
  • Amplifier:
  • Power (Tweeter/Midrange/Woofer): 50W/50W/80W
  • Type: Class D
  • Power consumption standby: <0.5W
  • Power consumption max.: 100W
  • Input voltage: 90 – 264V AC, 50 – 60Hz

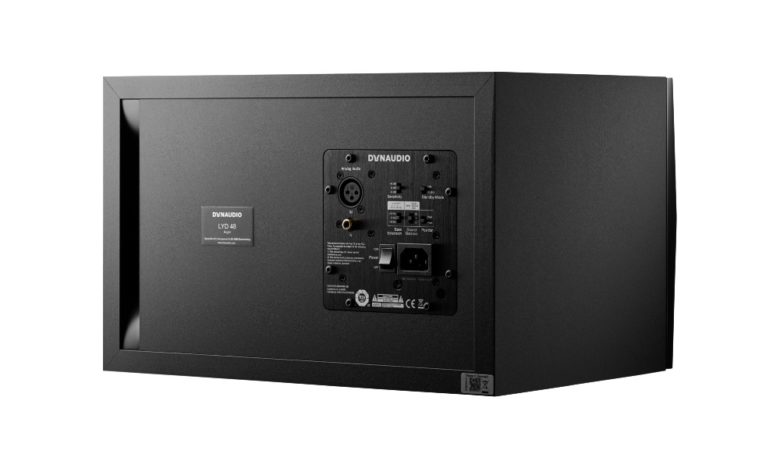

  • Inputs: XLR balanced/RCA unbalanced
  • Outputs: N/A
  • Frequency response -6dB limits:
  • Bass extension +10Hz: 60Hz – 21kHz
  • Bass extension 0Hz: 50Hz – 21kHz
  • Bass extension -10Hz: 40Hz – 21kHz
  • Free field frequency response: 50Hz – 19kHz
