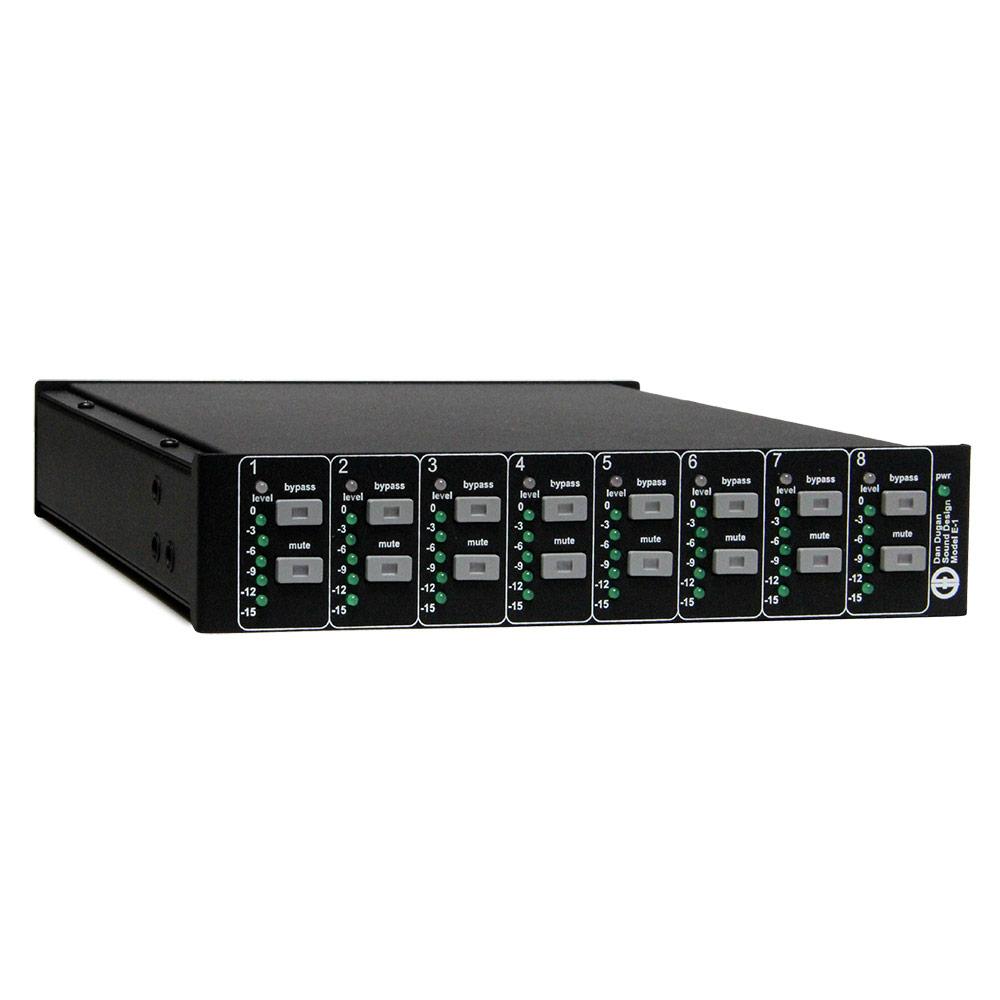

DAN DUGAN Model E-1A
Automatic Mixing Controller – Unbalanced Analogue I/O
Price excludes VAT
Product lists can be submitted to HHB for a packaged quotation
The Model E-1A Automatic Mixing Controller helps professional audio mixers handle multiple live mics without having to continually ride their individual faders. This eight-channel (analogue) or sixteen-channel (digital) signal processor patches into the input insert points of an audio mixing console.
It detects which mics are being used and makes fast, transparent cross-fades, freeing the mixer to focus on balance and sound quality instead of being chained to the faders. The Model E-1A’s voice-controlled crossfades track unscripted dialogue perfectly, eliminating cueing mistakes and late fade-ups while avoiding the choppy and distracting effects common to noise gates.
Features:
- Eliminates late upcuts
- Reduces PA feedback and studio noise
- Eight channels analogue or sixteen channels digital
- Dugan Control Panel for Java included
- Channels may be grouped into three independent auto mixers
- Half-rack size – mount two in one RU
- Link up to eight units for up to 128 channels
Product Specs
| Analogue Audio Inputs | Unbalanced, 6 kOhm, -22 to +4 dBu nominal level, +21 dBu maximum |
| Analogue Audio Outputs | Unbalanced, 100-Ohm source, drives a 600-Ohm load, +21 dBu maximum |
| Output Noise | Less than -91 dBu (A-wtd); 112 dBA dynamic range |
| Digital I/O | ADAT optical, 48 kHz/24 bit (will operate with 44.1 kHz digital I/O) |
| Frequency Response | 10 Hz to 22 kHz, +0/-1 dB |
| Crosstalk | -81 dB @ 20 kHz |
| Distortion | Less than 0.003% THD+N at +21 dBu |
| Gain | Unity |
| A/D and D/A | 48 kHz/24 bit (will operate with 44.1 kHz digital I/O) |
| Audio Latency | 0.6 ms |
| Optical Linking | Up to 8 units (128 channels) may be linked; links with Models D-2, D-3, E, E-1, E-1A and Dugan-MY16 |
| Connectors | Audio – 1/4-in TRS; tip input, ring output 10/100 BASE T – RJ-45 Linking, Digital I/O – ADAT optical Power – Coaxial 5.5 mm o.d., 2 mm i.d. |
| Power | Nominal 12 VDC 1.3 A maximum; accepts 9-24 VDC, either polarity, or 9-18 VAC separate power supply unit; input 120 VAC, 60 Hz, 27 W; output 12 VDC, 1.5 A; Approved UL, CUL |
| Dimensions | 1RU H = 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm) |
| Rack Mounting | Parts supplied for mounting one or two units in 1RU of 19-in rack |
| Weight | 3.4 lb (1.5 kg) 7.0 lb (3.2 kg) in shipping box with power supply |
