CB Electronics TC-5B-MIDI

Timecode generator, reader and converter LTC/MTC/USB

TC-5B-MIDI

£600.00 Price excludes VAT

Temporarily out of stock

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

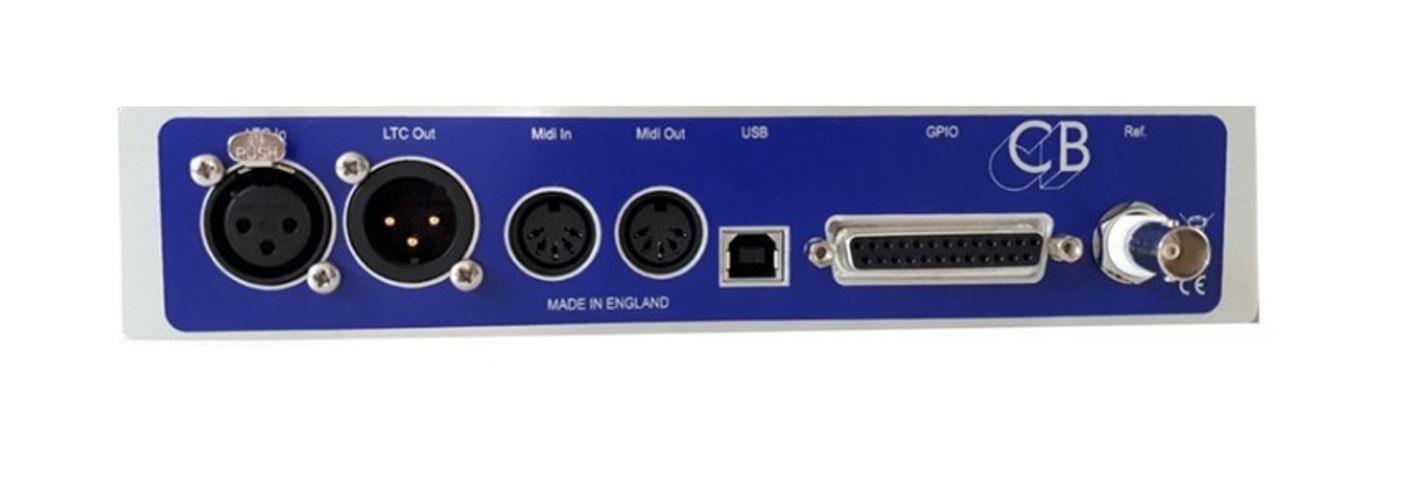

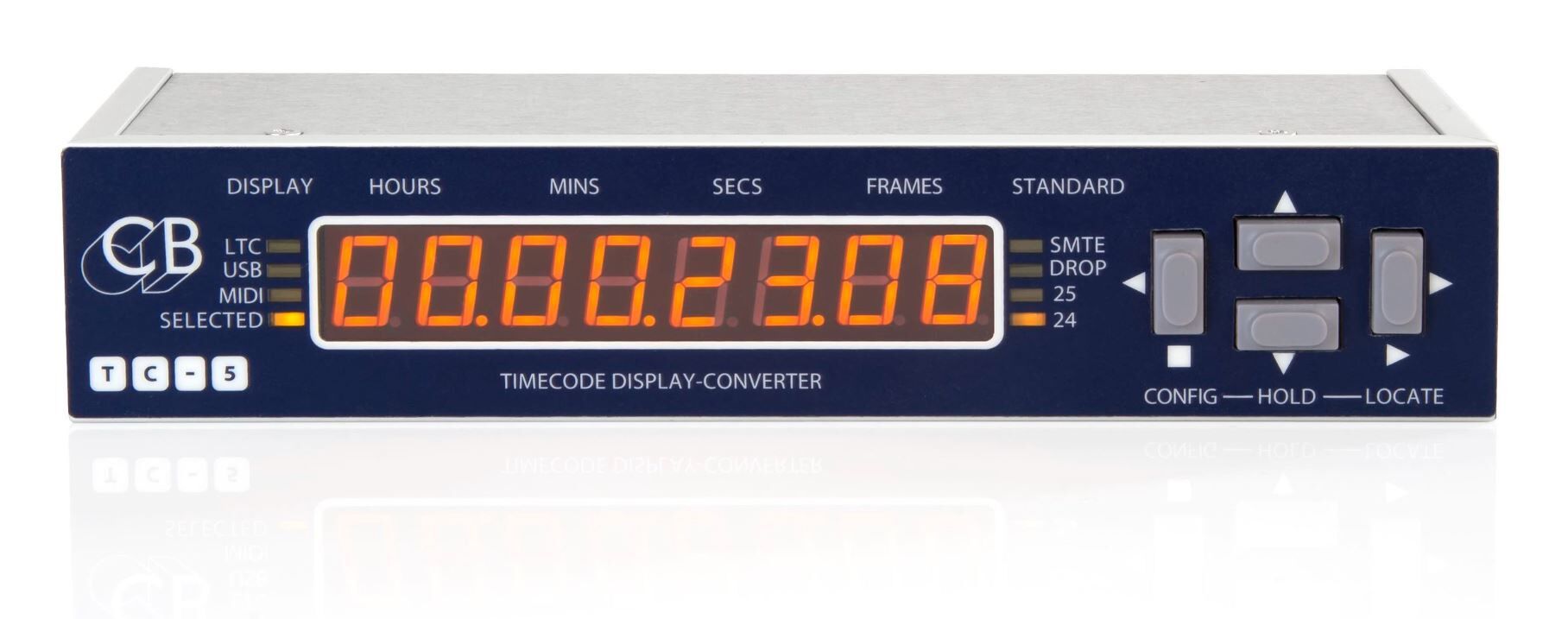

The TC-5B-MIDI is a professional MTC/LTC interface with LED display, Video Sync, Word Clock input and USB port. It is designed to be equally at home in Audio, Video and Lighting Environments, applications include Digital Audio Workstations, Non Linear Video Editors, Mixing Consoles, Show Control and Lighting Control. Replacement for MIF4. The dual MIDI interface allows for the control/setup software to be run at the same time as a user application.

As a test tool the TC-5B-MIDI can check the frequency of Timecode, MTC, Video and Word Clock. The TC-5B-Midi/RS-422 can also compare LTC with MTC.

Features

  • 7 GPIO+9GPI, USB, GPO Events
  • Real Time Clock
  • LTC Timecode In/Out (XLR)
  • Dual Channel USB-MIDI Interface , bi-directional, converts to MTC and LTC
  • LTC/MTC generator controlled from front panel or by MMC from USB or MIDI
  • Mac/Windows Event Control/Setup Software
  • Large (0.56”/ 14 mm) Ultra Bright LED Display
  • Word Clock or SD/HD Video Sync Reference
  • 1U Rack mount brackets included
  • Midi In/Out (5 pin Din)
