CALREC Type R

Modular, expandable broadcast audio mixing system

TYPE-R

Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



A modular, expandable, IP-based mixing system, Type R uses standard networking hardware and soft panels which can be tailored to operator needs. It has just three hardware panels to create a variety of system types, ties in with Calrec Assist for mixing in the cloud, and provides mix facilities for up to three independent mixers to hang off one system core.

Why you need a Type R for Radio

Type R’s flexible IP core enables broadcasters to benefit from virtual working practices and automated broadcast workflows on a cost-effective SMPTE 2110-compliant IP backbone. Type R provides fully automated programming with real-time adjustment of unpredictable external factors, either via the web or via highly portable dedicated hardware elements.

Why you need a Type R for TV

Type R’s flexible IP core enables broadcasters to benefit from virtual working practices and automated broadcast workflows on a cost-effective SMPTE 2110-compliant IP backbone. Type R provides fully automated programming with real-time adjustment of unpredictable external factors, either via the web or via highly portable dedicated hardware elements.

Core

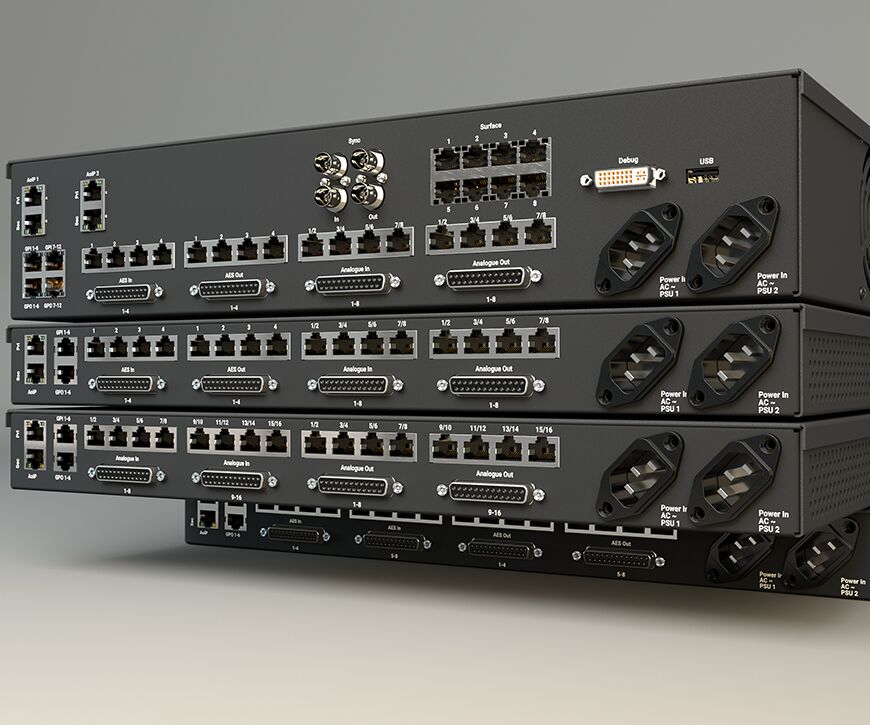

Calrec Type R Core I/O front (UR6500)

Calrec Type R Core I/O Rear (UR6500)





Calrec’s Type R has a simple 2U core at its heart, with integrated I/O resources to get you up and running immediately. With optional software packs to add 40, 80 or 120 DSP channels, a single core can power up to three independent mixing environments, with no sharing of DSP resources. Type R Cores can be purchased in pairs to provide a fully redundant system.

Connections

  • 4 x AES input ports
  • 4 x AES output ports
  • 8 x channels of analogue mic/line input with 48v phantom power indication
  • 8 x channels of analogue line level output
  • 12 x GPI
  • 12 x GPO ports
  • 2 x stereo headphone outputs
  • Optional redundant AoIP boards (256-ch AES67)
  • Optional I/O boxes available to add additional analogue and/or AES I/O (see below)
  • Compatible with Hydra2 fixed and modular I/O routing system (see related products)

Control Panels

Fader Panel

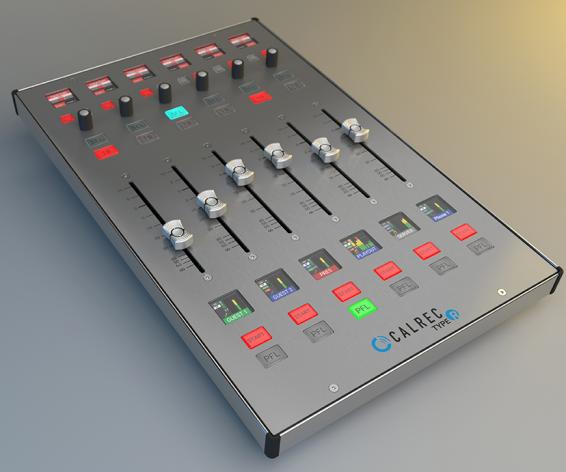

Calrec Type-R Fader Panel

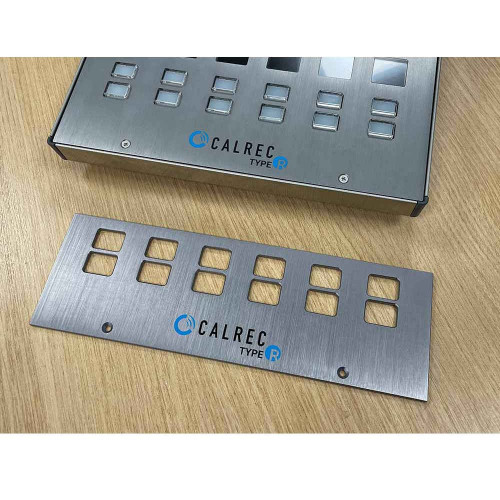

Fader panels are small, sleek and simple, with six faders and immediate access to essential controls. Fader panels can be added or removed as simply as plugging or unplugging an Ethernet cable, creating a radio infrastructure that is easily expandable, and making upgrades quick and simple. Optional IN6556 Fader Button Guard available to prevent inadvertent button presses.

Large Soft Panel

Calrec Type-R Large Soft Panel (LSP)















Type R touch-screen soft panels are designed around simple and colourful control elements and can easily be customised as multi-function panels. This functionality can be quickly changed from show-to-show using simple memory loads and can be tailored to fit the needs of the talent.

Small Soft Panel

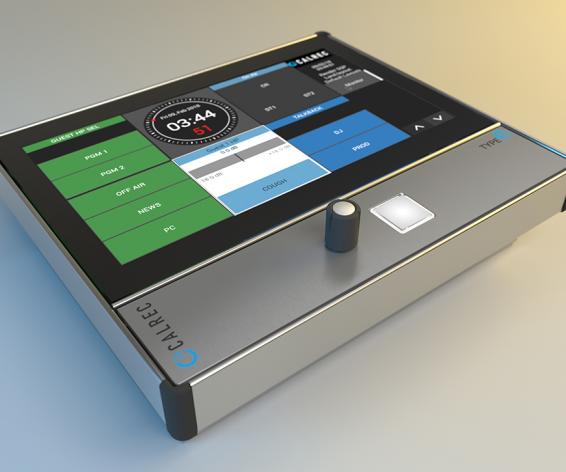

Calrec Type-R Small Soft Panel (SSP)















Soft panels can be utilised in either landscape or portrait formats and used to provide adaptable and specific functionality for talent, while ensuring overall control is maintained by the station technical team. Both LSP and SSP panels can be added with a single Ethernet connection.

Additional I/O Options

Type R Combo I/O Box (AD6501)
Type R Combo I/O Box (AD6501)





  • 4 x AES In (with SRC)
  • 4 x AES Out
  • 8 x Mic/Line In with 48v
  • 8 x Line out
  • 2 x 6.35mm (1/4”) headphone outputs
  • 6 x GPI interfaces
  • 6 x GPO interfaces
  • 2 x IEC Power Connectors
  • AoIP interface via RJ45 connectors (with redundant Primary and Secondary connections)

Calrec Type R Analogue I/O Box (AD6502)
Calrec Type R Analogue I/O Box (AD6502)
16 x Mic/Line Inputs with 48v

  • 16 x Line Outputs
  • 6 x GPI interfaces
  • 6 x GPO interfaces
  • 2 x IEC Power Connectors
  • AoIP interface via RJ45 connectors (with redundant Primary and Secondary connections)

Calrec Type R AES I/O Box

Calrec Type R AES I/O Box

  • 8 x AES In (with SRC)
  • 8 x AES Out
  • 6 x GPI interfaces
  • 6 x GPO interfaces
  • 2 x IEC Power Connectors
  • AoIP interface via RJ45 connectors (with redundant Primary and Secondary connections)
