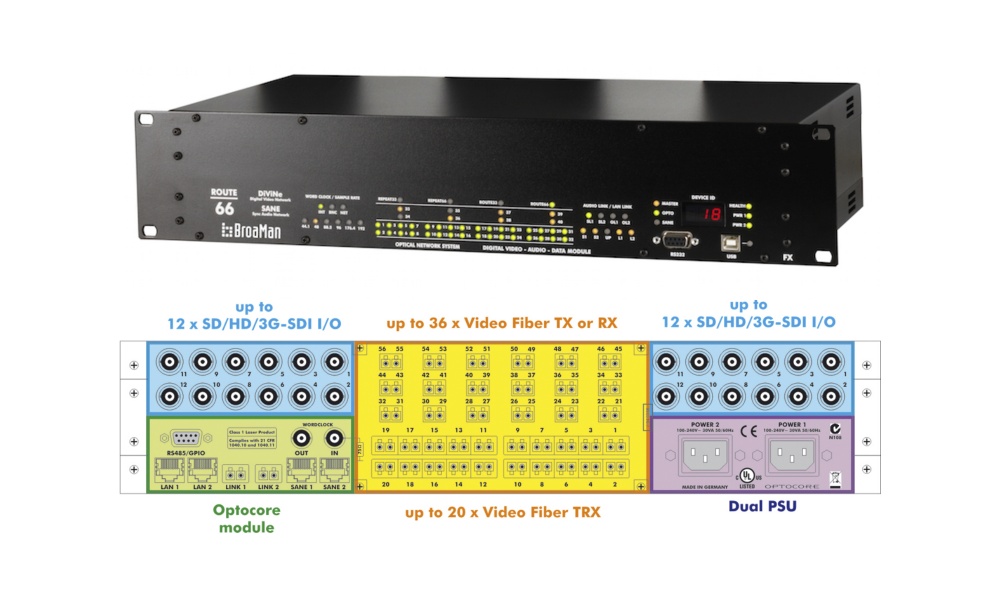

Route66 Video AutoRouter is a solution dedicated for small and large studio facilities with multiple connection points and mobile stageboxes.

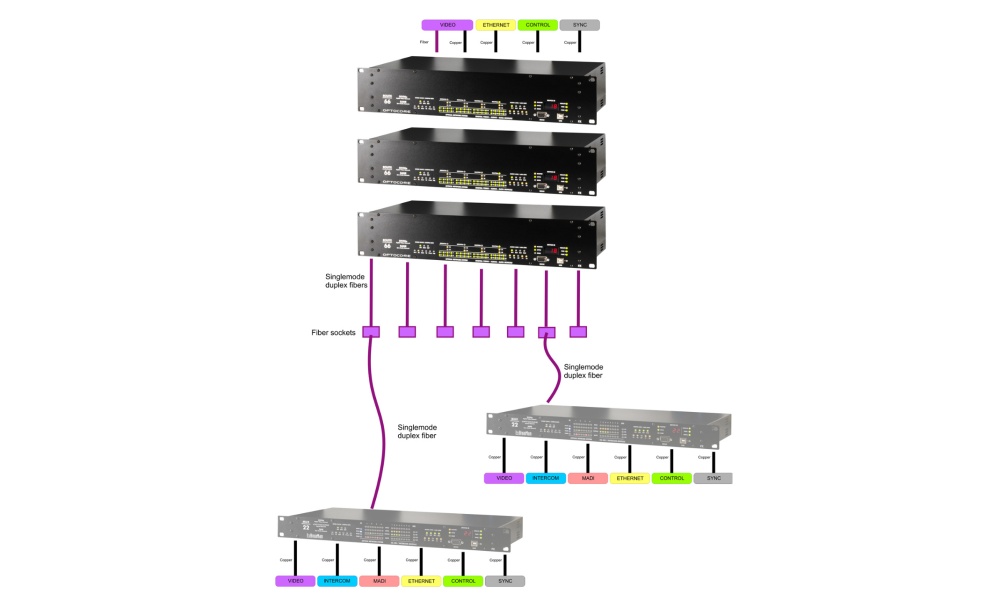

Multiple Route66 Video AutoRouters are interconnected to create an advance routing array, which is specified and built in close cooperation with the customer. Thanks to this, customer receivers a cost efficient, application engineered solution tailored to his requirements.

Video AutoRouter array enables very quick set changes in studio, without necessity of complex programming each time. Video, audio and data channels always follow the stagebox, whenever it is connected. Thanks to sophisticated design Route66 Video AutoRouter array automatically discovers stagebox movement and patches all pre-programmes channels to the port where stagebox is actually connected. The system enables multiple stagebox connection, each stagebox with its unique patch.
On a day-to-day basis no user control is required and all the advanced routing action is done in the background.


  • Automatic Video, Audio and Data routing
  • No software operator required
  • Up to 24 stageboxes
  • Each stagebox with pre-programmed patch – plug&play stageboxes

Video ports

  • Standards SD, ED, HD, Dual Link, 3G, ASI, MADI
  • Complies with SMPTE 259M, 292M, 344M, 372M, 424M
  • Interface SDI – Serial Digital Interface

Optical Connection Complies with 21 CFR 1040.10 and 1040.11

  • Connection LC
  • Data rate Dependent on the Video data rate – no bandwidth restriction
  • Fibre cable lengths Standard singlemode transceiver ≤ 10 km
  • Special singlemode transceiver ≤ 80 km (on request)

SANE, LAN ports Convention

  • Audio TIA – 568A/B, Optocore 200 Mbit/s
  • LAN TIA – 568A/B, IEEE – 802.3 10/100 Mbit/s

Serial Data Port Convention EIA / TIA-485

  • Data channels Digital control data 4
  • Data rate Up to 10 Mbps
  • Impedance Termination 330 Ω
  • Source ≤ 10 Ω

Auxiliary Fibre Port 1310nm fibre tunnel

  • Connection Duplex LC
  • Data rate Dependent on the distance between locations – no bandwidth restriction

Word Clock

  • Data rate Depending on selected sample rate Up to 192 kHz
  • Impedance Output ≤ 5 Ω
  • Input 75 Ω
  • Drive level Output ≥ 1 Vpp
  • Zero level Referring to GND + 1.7 V
  • Sense level Input ≥ 400 mVpp

Power Supply

  • Type Switch-mode, universal input
  • Mains voltage 100? 240 V 50 60 Hz
  • Frequency 50 60 Hz
  • Cooling Passive, via surface and ventilation openings on both sides of the device

Dimensions 2 RU / 19″

  • W x H x D 19.0 x 1.73 x 7.87 inch
  • Weight Dependent on configuration
