All signals in one duplex fibre cable


£0.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List


Mux22-IVT/IC422 is a device, which combines different formats of video, intercom and data in a single duplex fibre cable. The number of video inputs and outputs can be specified when ordering, by selecting dual input or dual output modules. Every single channel and transceiver in the device can be controlled and monitored in real time remotely using Optocore Control application.

Mux22-IVT/IC422 was created in cooperation with Clear-Com. It integrates matrix-panel intercom connections including audio and control data transport.

The device is fully compatible with all Optocore products, which makes it very flexible. It is very easy to add analog or digital audio to the Mux22 by extending it with the Optocore devices. Still everything is transported via the same single duplex fibre cable.

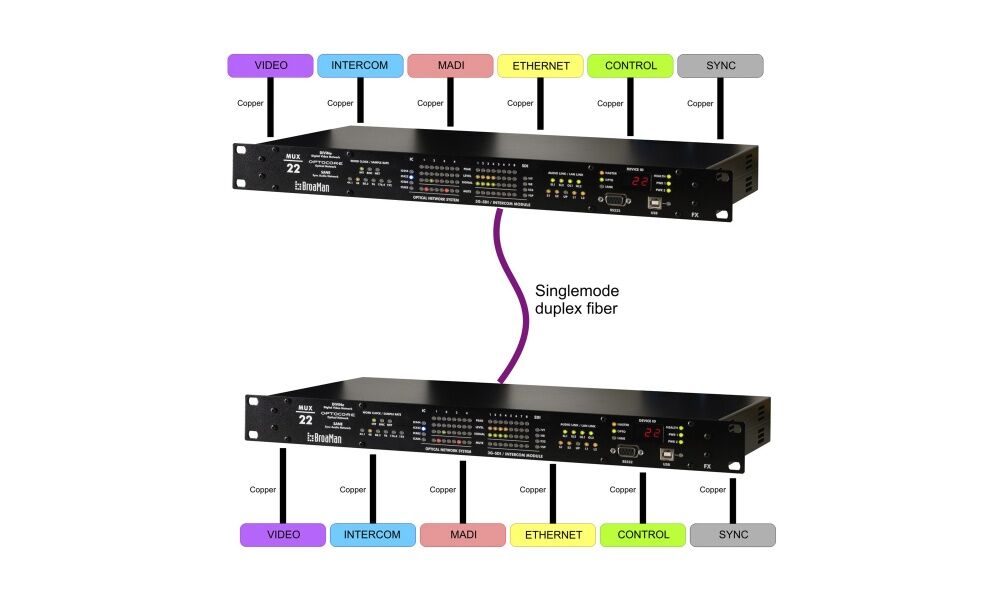

Mux22 can be used as a point-to-point pair to transport multiple signals between two locations. Furthermore it can be used as a stagebox to Route66 Video Router – in that case it becomes a remote I/O device for the star-based larger system.

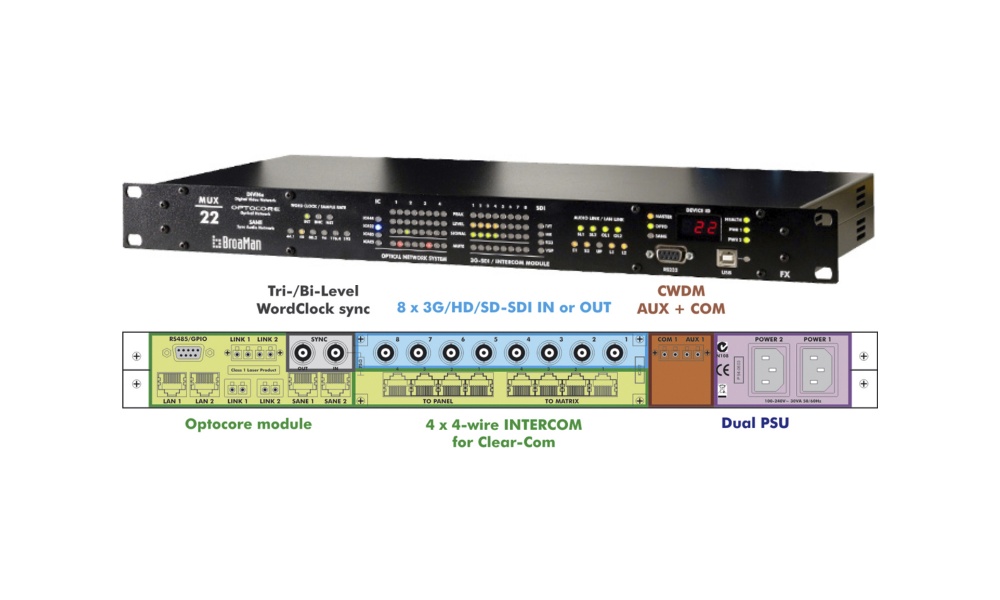

  • 8 x 3G-SDI reclocked video channels
  • Video available in different I/O combinations
  • Integration with Clear-Com 4-wire intercom
  • 2 x fibre SFP ports for redundant Optocore ring
  • 2 x SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
  • 4 x RS485/422 or 4 x GPIO
  • 2 x LAN
  • V-Sync I/O – software selectable Tri-Level, Black Burst or WordClock sync
  • Auxiliary 1310nm tunnel for any-bandwidth 3rd party fibre protocol, i.e. MADI, 1G Ethernet, 10G Ethernet, SMPTE 311m
  • Dual redundant PSU
  • No fan
  • 1RU chassis

Video ports

  • Standards SD, ED, HD, Dual Link, 3G, ASI, MADI
  • Complies with SMPTE 259M, 292M, 344M, 372M, 424M
  • Interface SDI – Serial Digital Interface

INTERCOM ports 4-wire Clear-Com intercom standard

  • Connection RJ45
  • 4 x line input, 4 x line output, 4 x RS422

Optical Connection Complies with 21 CFR 1040.10 and 1040.11

  • Connection LC
  • Data rate Dependent on the Video data rate – no bandwidth restriction
  • Fibre cable lengths Standard singlemode transceiver ≤ 10 km
  • Special singlemode transceiver ≤ 80 km (on request)

SANE, LAN ports Convention

  • Audio TIA – 568A/B, Optocore 200 Mbit/s
  • LAN TIA – 568A/B, IEEE – 802.3 10/100 Mbit/s

Serial Data Port Convention EIA / TIA-485

  • Data channels Digital control data 4
  • Data rate Up to 10 Mbps
  • Impedance Termination 330 Ω
  • Source ≤ 10 Ω

Auxiliary Fibre Port 1310nm fibre tunnel

  • Connection Duplex LC
  • Data rate Dependent on the distance between locations – no bandwidth restriction

Sync Hardware standard BNC – 75 Ω

  • Input Standards Word Clock, Black Burst (bi-level), Tri-Level
  • PAL/SECAM, NTSC, 720p59.94, 720p50, 1080i29.97, 1080i25
  • Output Standards Word Clock, Black Burst (bi-level), Tri-Level
  • BNC 1Vpp, BNC 3Vpp, PAL/SECAM, NTSC, 720p59.94, 720p50, 1080i29.97, 1080i25
  • Output Phase Shift Line, Frame, Pixel, Percent, Degree

Remote Control

  • RS232 EIA / TIA – 232 57 600 Baud
  • USB USB 2.0 – Device 12 Mbit/s
  • LAN IEEE – 802.3 10/100 Mbit/s

Power Supply

  • Type Switch-mode, universal input
  • Mains voltage 100? 240 V 50 60 Hz
  • Frequency 50 60 Hz
  • Cooling Passive, via surface and ventilation openings on both sides of the device


Dimensions 1 RU / 19″

  • W x H x D 19.0 x 1.73 x 7.87 inch
  • Weight Dependent on configuration
