AUDIO-TECHNICA ATND8677

Dante-enabled microphone desk stand

ATND8677

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



Audio-Technica ATND8677 is a Dante-enabled microphone desk stand for use with any gooseneck microphone with a three-pin XLRM-type output connector. The desk stand is designed for surface-mount applications such as high-quality sound reinforcement, conferencing, distance learning and other demanding sound pickup applications.

  • Connects directly to network via Ethernet cable – no soldering or additional cable required
  • Integrated user switch controls talk/mute in Local mode and triggers Dante-enabled devices in Remote mode
  • Local or remote control of gain, low-cut UniSteep filter, red/green LED status indicator and phantom power
  • Powered by network PoE
  • Scalable across Dante’s 512 bidirectional audio channels
  • Touch-sensitive capacitive-type user switch
  • UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Three-pin XLRF-type input for quick mounting of any gooseneck microphone with an XLRM-type output
  • Heavy die-cast case and non-slip silicone foam bottom pads minimise coupling of surface vibration to the microphone

Specifications

  • Frequency response: 20-20,000 Hz
  • Low frequency roll-off: 80 Hz, 18 dB/octave
  • Input impedance: 1.4 kO
  • Maximum input levels: -10 dBu @ +30 dB gain / -20 dBu @ +40 dB gain / -30 dBu @ +50 dB gain
  • Signal-to-noise ratio1: 68 dB, 1 kHz at 1 Pa
  • Power requirements: PoE IEEE802.3af standard
  • Power consumption: 1.5W
  • Microphone phantom power: 12V DC
  • Switches: Local Mode: Touch-sensitive capacitive-type user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB; Phantom power: 12V DC, off Remote Mode: Low-cut and Gain via third-party software*
  • Weight: 770 g (27.2 oz)
  • Dimensions: 133.0 mm (5.24″) maximum length, 93.8 mm (3.69″) maximum width, 46.2 mm (1.82″) maximum height
  • Input connector: 3-pin XLRF-type
  • Output connector: Physical level: standard Ethernet

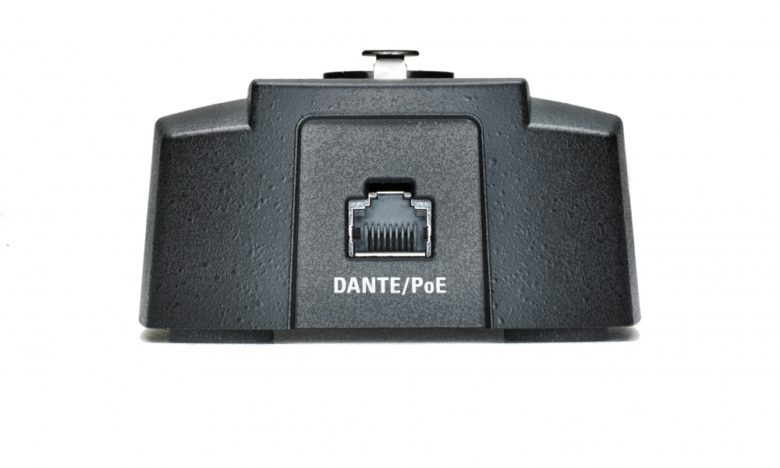

  • Dante network:Connector: single RJ45 | Cable quality: Shielded CAT5 or CAT6 recommended | Transmission speed: 100 Mbps
