ATC SCM45A Pro

3-way active monitor with dual bass drivers

SCM45APRO

£4,125.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

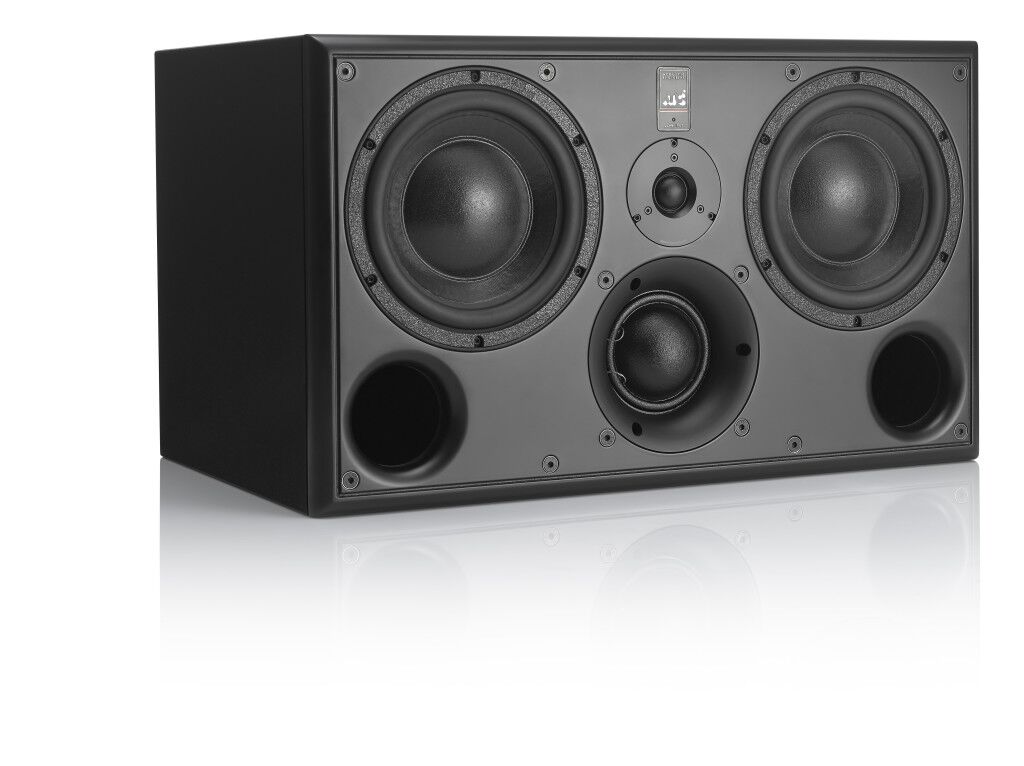

The ATC SCM45A Pro is a 3-way active monitor with a 1-inch soft dome tweeter, 3-inch mid driver and two 6.5-inch carbon-paper cone bass driver. An on board class A/B three-channel amplifier delivers a maximum output of 112db (SPL @ 1m).

The SCM45A monitor provides a coherent horizontal dispersion of ±80-degrees, and a coherent vertical dispersion of ±10-degrees. A low frequency boost is present from 0dB to +3B at 40Hz (continuously variable via rear panel trimmer).

Key Features

  • Compact vey high performance 3-way studio monitor
  • Proprietary ATC 75cm/3″ soft dome mid-range driver for exemplary mid-band reproduction over a wide, stable sound filed
  • 2 x ATC hand built 6.5”/164mm carbon-paper cone bass drivers
  • Hand built, 3-channel class A/B amplifier featuring 4th order filters and FET momentary gain reduction
  • 6 year warranty

SCM45Ai Pro  install version also available for wall/ceiling bracket mounting. Reinforced cabinet, mounting bolts & connectors in cabinet rear face. Requires remote amp hardware, NL8 speaker cables & 5-pin XLR LED cables – sold separately. Cable lengths must be specified – 10m maximum recommended.

SCM25APRO

Media

Datasheet (1.47 MB)
Manual (198.16 KB)
