The D700 DAW controller offers an all-purpose user interface for a state-of-the-art music production. Designed for maximum productivity it adapts to your needs unconditionally. With up to 64 motorized faders, countless LED push buttons and RGB rotary encoders there is no limit to your creativity. The multitude of connection options, like Midi, OSC and MQTT, controls everything the heart desires. From a DAW program to lighting software up to a music player and a smart home.

Through its attractive design with a depth of only 265mm the D700 finds its place on every desk. The low construction height of only 36mm contributes to its timeless design which makes it look good everywhere. Only 1.95m is needed to house 64 faders.

By use of the double click function you can allocate a second action to every button which gives you access to even more functions on smallest space. This is supported by a “push and rotate” function which allows you to turn a rotary encoder in its pushed state to control a second function.

The aluminium chassis with its anodized laser printed surface does not only look sophisticated but is also extremely robust. Furthermore, the click noise of all push buttons is reduced by their silicon caps. Connected with three screws you can arrange each individual chassis in every order you desire.

With the tremendous quantity of LEDs and the all-round translucent push button caps you have everything immediately in sight out of every perspective. That combined with the RGB encoders creates a true light spectacle.


Asparion D700FT

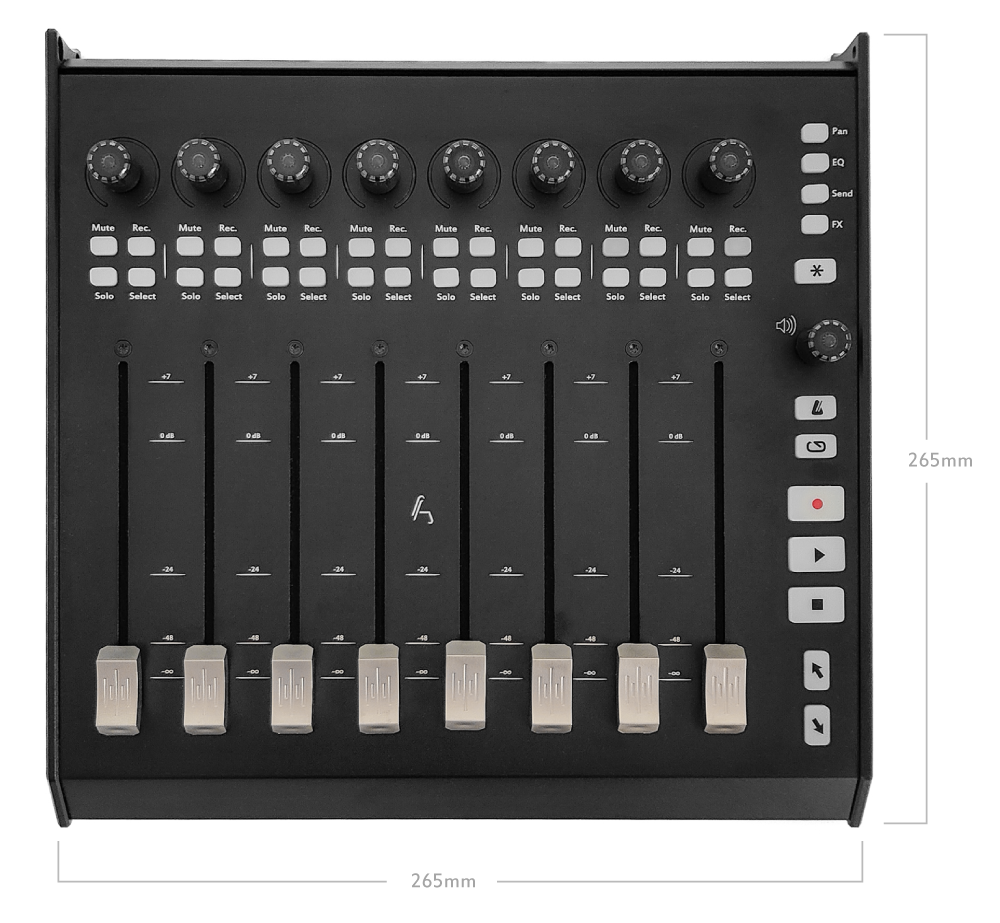

The D700FT forms the basis.
Besides all basic functions like “play”, “stop” and “record” you can control the master volume with an RGB encoder. The buttons Pan, EQ, Send and FX will assign the respective function to the rotary encoders. Thereby a huge number of parameters can be controlled.

The available sockets to connect a sustain or expression pedal give you the chance to even use your feet. You can connect up to 7 extensions to the D700FT which gives you up to 64 faders at the same time.





Asparion D700F
The combination of 8 highly precise motorized faders with 4 LED push buttons each and an RGB rotary encoder with a LED ring gives you full control over your audio tracks. The touch-sensitive metalized surface of all faders lets automation become child’s play. With an accuracy of up to 4000 levels per fader you always move your controllers exactly to where you want them to be. The fader noise has been reduced to a minimum so there are no distractions whatsoever. With the colorization of the RGB encoders, the audio channels can be identified in no time.






Asparion D700S

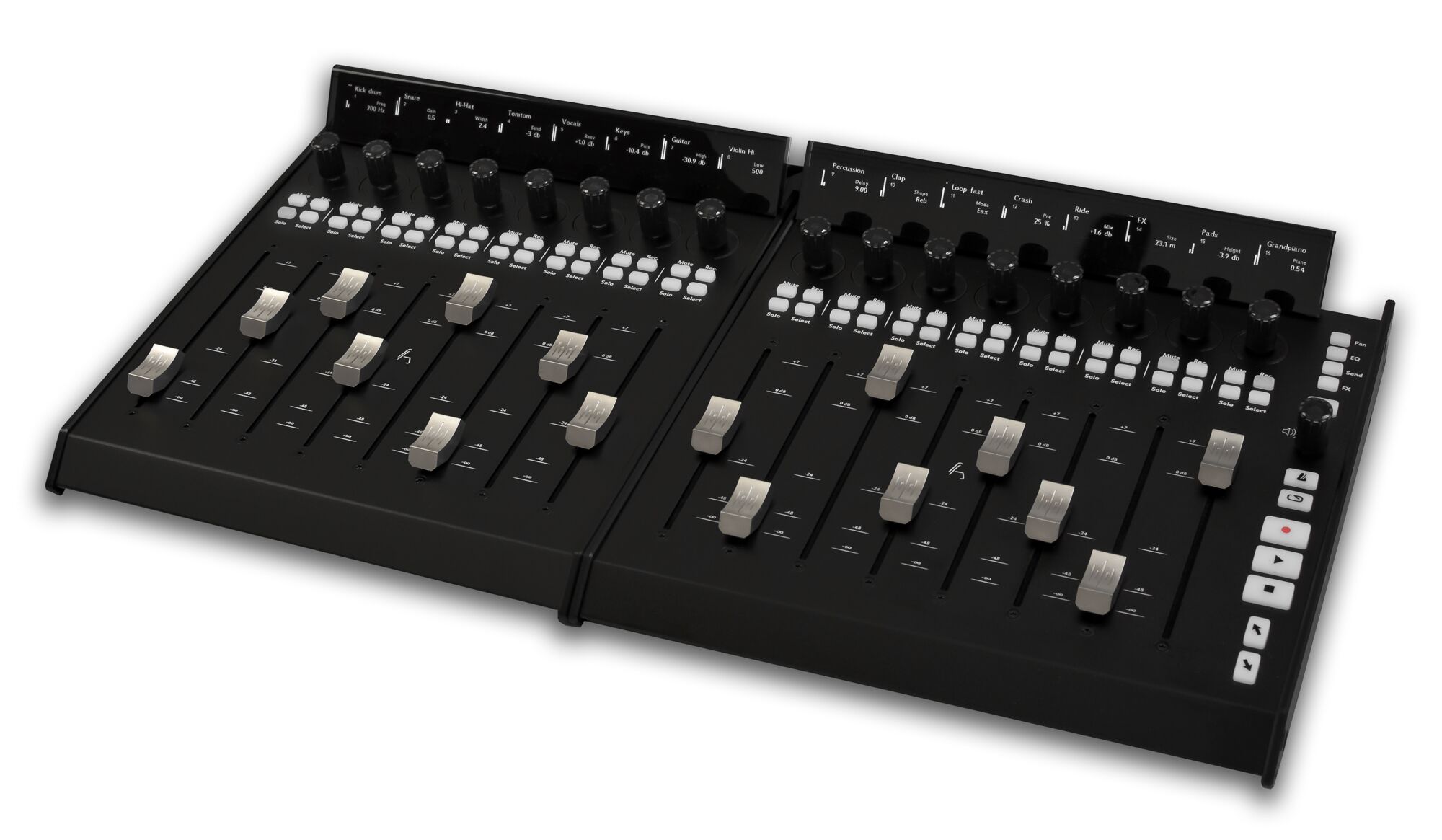

To keep an eye on all your tracks in all lighting conditions the D700 can be extended with an OLED display. Readability is guaranteed from every angle in darkness as well as in sunlight by the use of organic light diodes.

With a resolution of 1024×64 pixels combined with the high refresh rate working professionally is not an issue and the workflow is optimized. Alongside 3 lines of text plus the track number, the display offers a metering view with clipping. With up to 12 characters, names can be recognized quickly. The thin frame of 6.5mm follows the modern design of the D700. The add-on increases the height of the D700F by only 2.7cm. This results in a total height of 6.3cm which keeps the view on the monitor clear.


Manual (378.28 KB)
