API Lunchbox 6-slot

6-slot lunchbox with built-in Power Supply.

LUNCHBOX

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

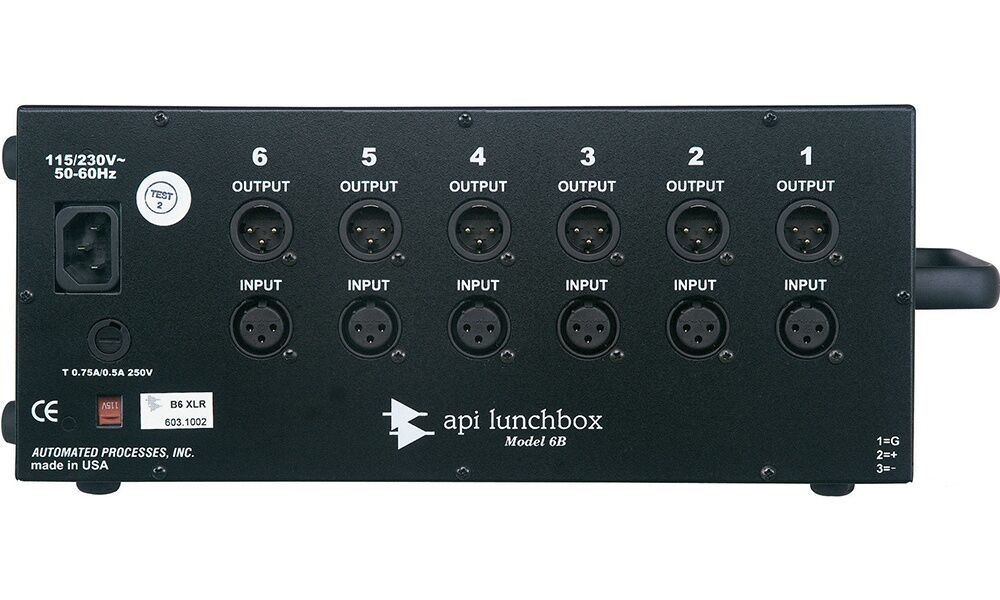

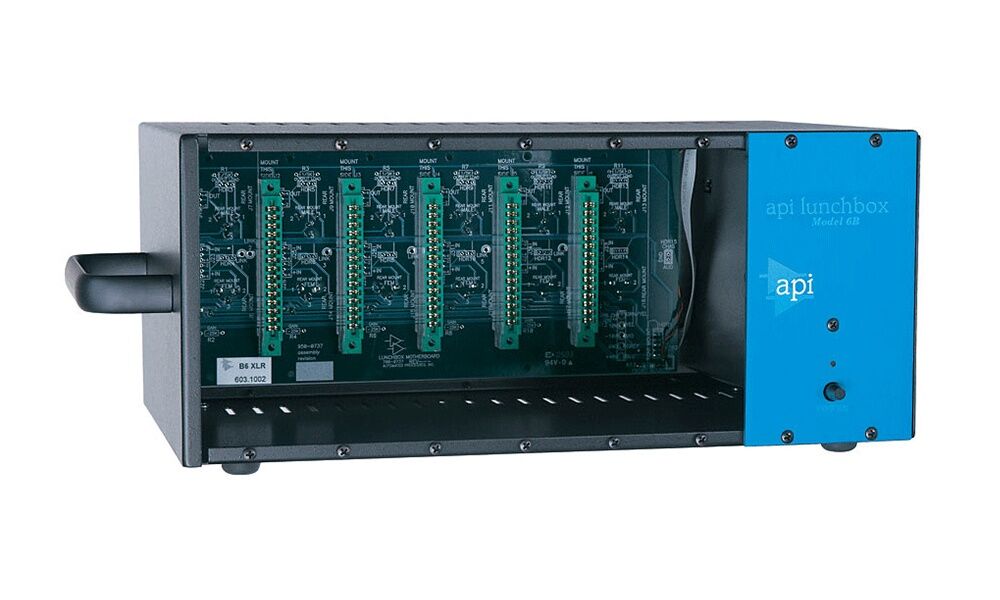

The API 500-6B lunchbox is a 6-slot rack designed to accept all API standard 5.25-inch X 1.5-inch modules. The lunchbox is self-powered with a rear panel selected AC voltage switch and a removable power cord. The input/output jacks are XLR. The lunchbox comes standard with a +48 volt internal phantom power supply, bussed to pin 15 for interface with the API 512c Mic Preamplifier.

API makes several modules for the 500-6B, including the 512c Mic Preamplifier, the 525 Compressor, the 527 Compressor, the 550A 3-band EQ, the 550b 4-band EQ and the 560 Graphic EQ. Combinations of these modules make perfect stereo recording packages (two 512cs and two 550bs) or vocalist’s box (one 512c, two EQs and one 527). The lunchbox can also host compatible 500 series models made by third party manufacturers.

• Holds 6 API standard modules

• 215mA per slot

• DB-25 connectors for easy input and output connection

• XLRs to access channels 7 and 8 of the multipins

• Power rail LED indication

• Self-Powered, 100 to 250 Volts switchable, 47 to 63 Hz
