ALLEN AND HEATH ZED-22FX

22-2 compact USB FX mixer

ZED22FX

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List

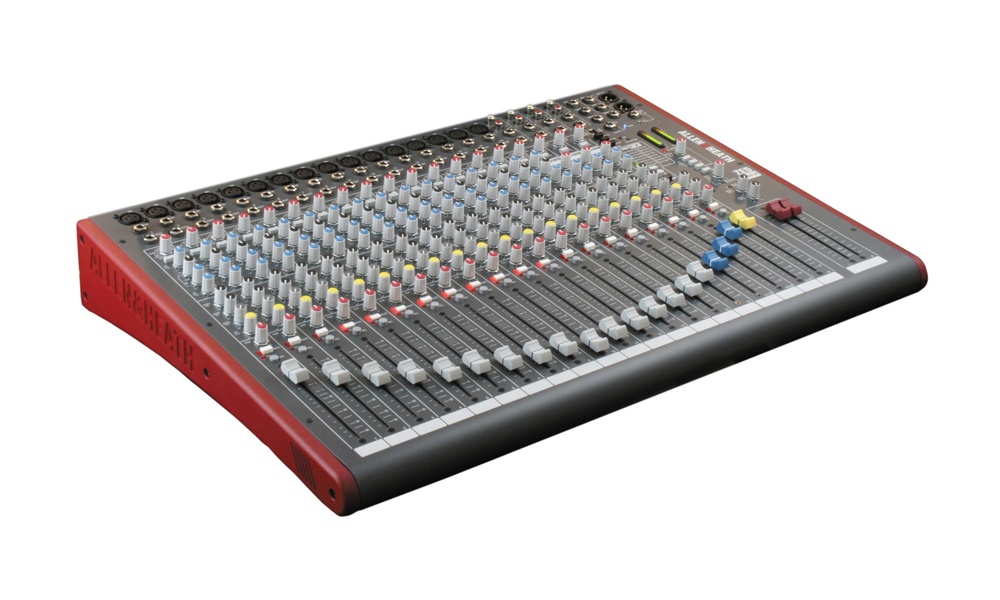

Designed for live performance, recording and production, the ZED-22FX is a compact analogue mixer with integrated digital effects and USB connectivity. In addition to 16 mic/line mono channels there are 3 dual stereo channels, each with a main stereo input on jack sockets, and the ability to take additional stereo inputs from phono sockets or the USB audio input. 4 aux sends are provided, of which 1 & 2 are prefade for foldback monitoring, and 3 & 4 post-fade for effects sends. A stereo signal can be sent from auxes via USB to computer to create 2 separate record feeds independent of the main LR mix (1&2) and or used as FX sends (3&4). The effects section features 16 effects including Delay and Reverb, Ping-Pong delay, a selection of reverbs with different room/hall/arena properties, flanger and chorus.

• 16 mono channels with insert point and 3-band swept-mid EQ

• 3 dual stereo input channels

• Configurable stereo USB connectivity

• 16 effects with tap tempo

• 3 aux sends

• 100mm professional quality faders
