ALICE Timecode DA

Timecode distribution amplifier

TIMECODEDA

£485.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

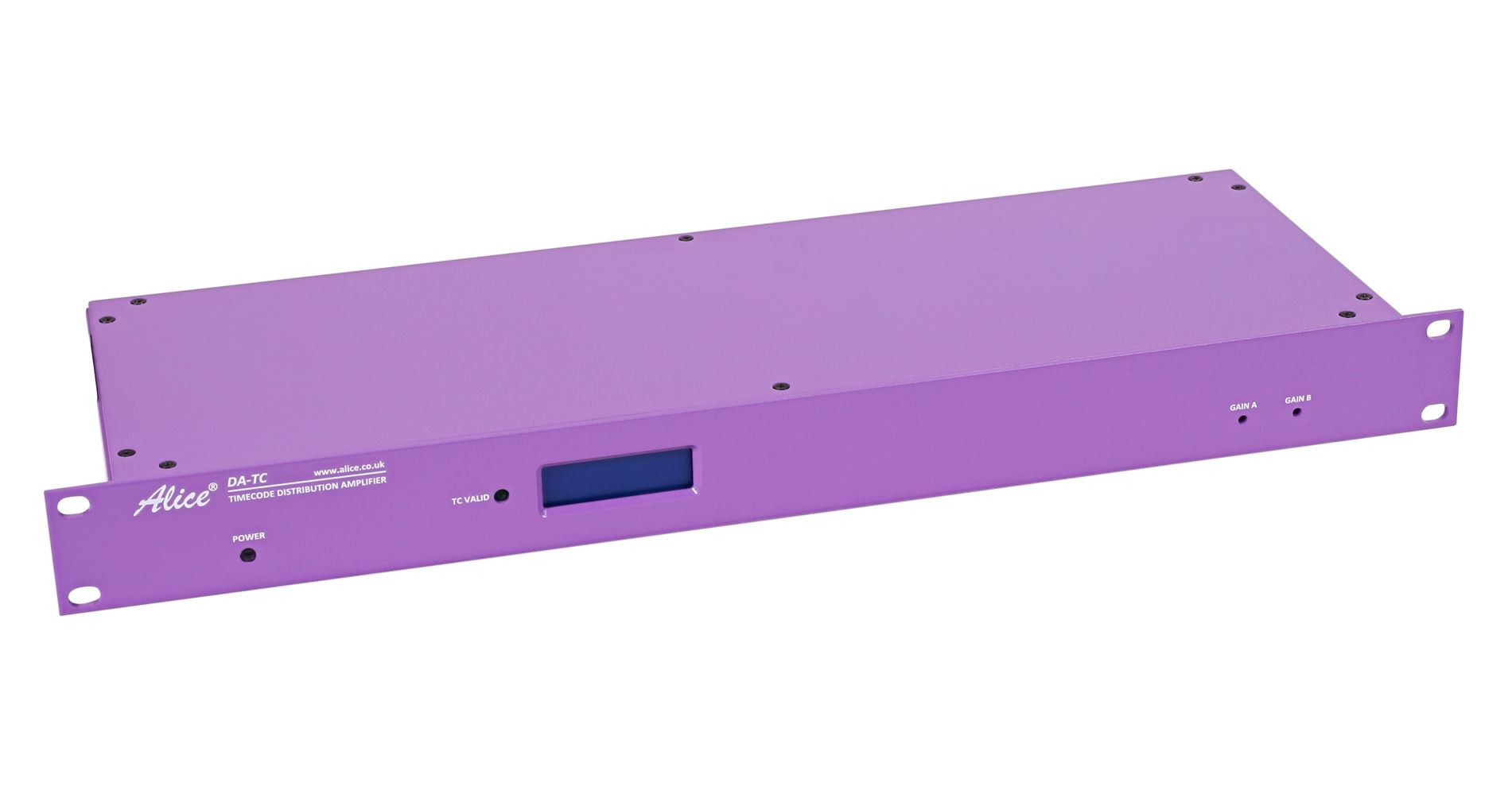

The Alice timecode distribution amplifier is a 19” rack mounted unit provides longitudinal timecode via a mixture of connection combinations up to twelve outputs in two banks of six. Each bank of outputs are adjustable via a front panel multi-turn trim potentiometer.

The front panel has a large illuminated LCD display showing timecode. The display can also be programmed to show your company name or other message on boot-up. These options can be requested at the time of ordering.

Uses include, on-location shooting with PSC cameras and portable audio mixers that require a jammed LTC timecode signal, outside broadcast trucks or fixed installations that require timecode to be sent to vision mixers, EVS, audio mixing desks and studio clocks etc.

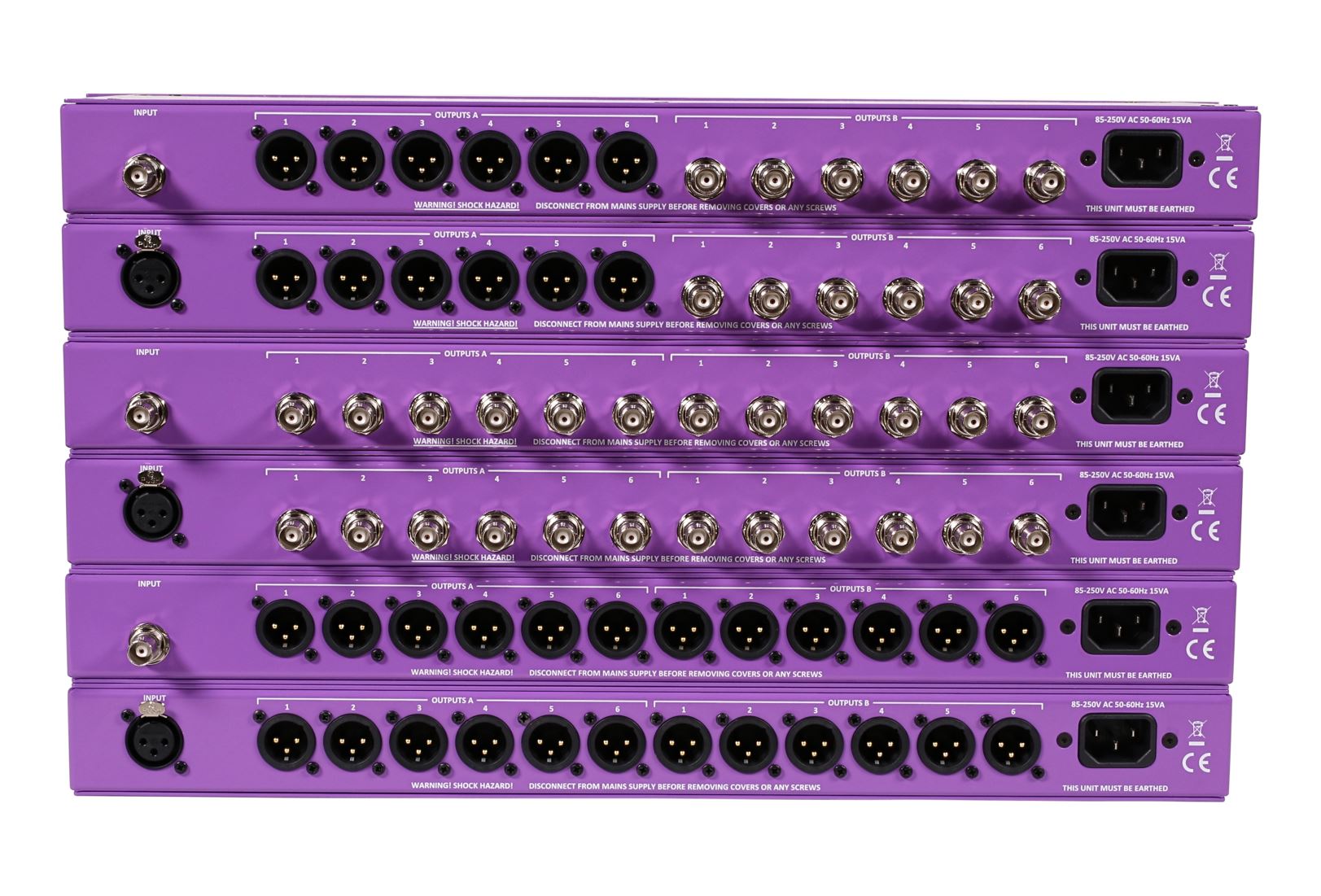

Available versions:
Type A: XLR input and 6 XLR and 6 BNC outputs
Type B: XLR input and 12 XLR outputs
Type C: BNC input and 12 BNC outputs
Type D: BNC input and 12 XLR outputs
Type E: BNC input and 6 XLR and 6 BNC outputs
Type F: XLR input and 12 BNC outputs

Media

Data Sheet (105.75 KB)
