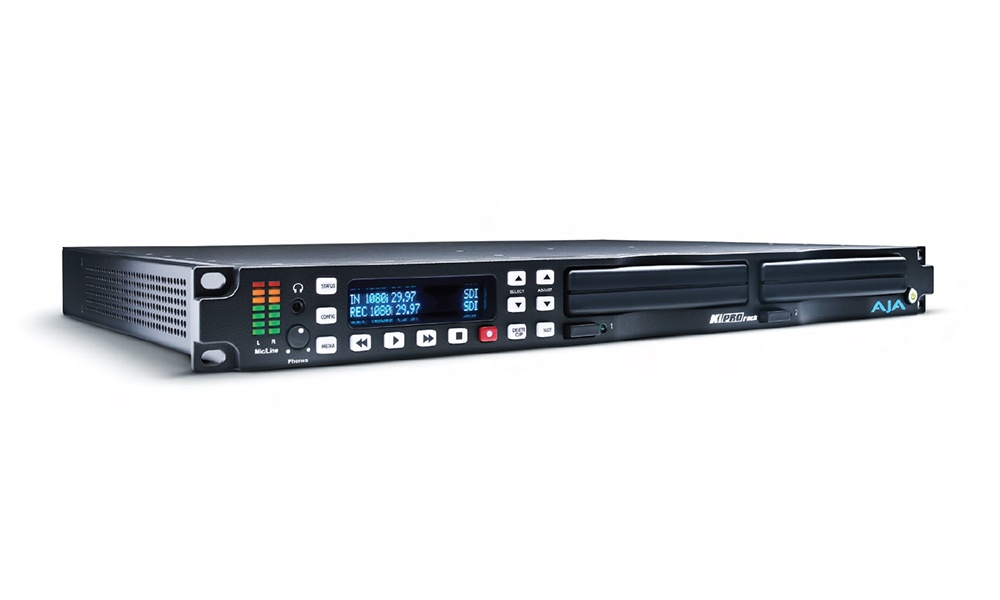

AJA Ki Pro Rack

File Based 1RU Recorder and Player

AJAKIPRORACK

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



The power of Ki Pro in a 1RU format, the perfect fit for your file-based workflow.
With a wealth of professional connections including SDI and HDMI, Ki Pro Rack will fit right into your existing cabling and routing system. Ki Pro Rack also features AJA’s industry-leading conversion technology, enabling you to perform broadcast quality up, down, cross-conversion during recording or playback without the need for additional conversion hardware.

Features
• HD/SD recorder and player
• Record to Apple ProRes or Avid DNxHD
• SDI, HDMI and Component Video I/O
• AES (BNC) and analogue (XLR) audio I/O
• 2x KiStor media bays with Ki Protect
• Up, down, cross-conversion built-in
• Easy to use web UI, configure and control from standard web browsers
• REF, LTC and RS-422 support
• Three-year warranty

Transition to File-Based Workflows
For video facilities transitioning from tape to file-based workflows for recording and playback, Ki Pro Rack offers high quality, ‘ready-to-edit’ file capture, designed to get material from source to editorial as quickly as possible.
With a wealth of professional connections, Ki Pro Rack will fit right into your existing cabling and routing system and record 10-bit Apple ProRes and Avid DNxHD files direct to removable hard disk or SSD Storage Modules, eliminating the need for time-consuming logging and capturing. The files can be used in most editing systems without the need for additional transcoding or importing processes.

Unify Formats – Speed Workflows
AJA’s high quality up, down, cross-conversion makes it easy to unify SD, 720p, and 1080i and create a single desired format for your project. The multitude of video and audio connections such as SDI, HDMI and analogue make integrating Ki Pro Rack with other production equipment easy.

RS-422 Control
RS-422 control allows Ki Pro Rack to integrate easily with supported editing systems and external controllers allowing it to fulfil several of the functions of a traditional VTR. Supported NLEs can even perform assemble edits directly to the Ki Pro Rack.
Ki Pro Rack’s RS-422 control can also be used to link a traditional VTR with Ki Pro Rack for direct editing control. Use the editing controls on properly equipped VTRs to control Ki Pro Rack for machine to machine transfer of video and audio. This allows tape footage to be captured directly as files on Ki Pro Rack without the need for a separate edit controller.

10-bit, Full Raster Recording
Big on quality – but not on file size. Recording 10-bit, full raster files, Ki Pro Rack gives you high-quality images that easily stand up to post-processing requirements – and client scrutiny.
Compared to 8-bit recording devices, 10-bit 4:2:2 recording (when supported by the codec) provides better quantization, giving a superior representation of the original scene and allowing for more flexibility in postproduction when adjusting colour and balance.
By utilizing efficient ProRes and DNxHD codecs, file sizes are kept in check so you won’t need to blow your production budget on extra storage.

Reliable Storage Media
Ki Pro Rack captures directly to reliable AJA KiStor media. KiStor media are available as HDDs or SSDs in a variety of capacities to best suit the demands of your production environment. KiStor modules also feature built-in USB 3.0 connectivity for direct connection to your editing system using standard interfaces. KiStor media may also be used with the optional KiStor Dock which features a Thunderbolt™ connection for lightning-fast data transfers.
Utilizing the rollover recording capability with the dual media drive bays, recording can start on one media module and seamlessly continue onto the second module once the first has reached capacity. This makes Ki Pro Rack ideal for long-form recording needs while maintaining incredibly image high quality.

Familiar Controls and Operation
Anyone familiar with the operation of a tape deck will feel immediately comfortable when working with Ki Pro Rack.
Just like a traditional tape deck, Ki Pro Rack features straightforward and dedicated transport buttons – record, play, stop, rewind, fast forward – making the device easy to operate with minimal training time. The current status of the system and key configuration information is clearly displayed on the built-in screen. Additional operational information can be found in the STATUS menu which can be accessed even when recording or playing back.
The Ki Pro Rack operating system offers users a flat menu structure that is easy to navigate with menu parameters presented in clear and understandable language.

Professional Connections
The video and audio connections on the rear panel of the Ki Pro Rack offer the same standard connectors found on traditional tape decks, allowing Ki Pro Rack to integrate easily with your current cabling and routing. The rear connections include SDI, HDMI, component analogue, AES and analogue XLR balanced audio, LTC, RS-422 and LAN.

Ethernet File Transfer
Utilizing the LAN network functionality, media can be copied to and from the Ki Pro Rack over the Ethernet connection. This allows for fast file transfers without the need to physically remove the media from the Ki Pro Rack, which can be especially useful in larger facilities and cuts down dramatically on the number of people that have to enter the machine room, minimizing the risk of unintentional interference with equipment.

Remote Configuration and Operation
In a truck or a machine room, Ki Pro Rack is equipped for advanced remote control and configuration. With a standard Ethernet LAN connection to a host computer and any web browser, all Ki Pro Rack parameter settings, clip selection and transport controls can be controlled; no additional or special software installation is required on the host computer. Multiple Ki Pro Rack units can even be controlled from a single web interface making Ki Pro Rack an ideal solution for multi-camera recordings.

Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Ki Pro installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
Ki Pro products are covered by a generous three-year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
