Universal Frame Synchroniser/Converter


£0.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

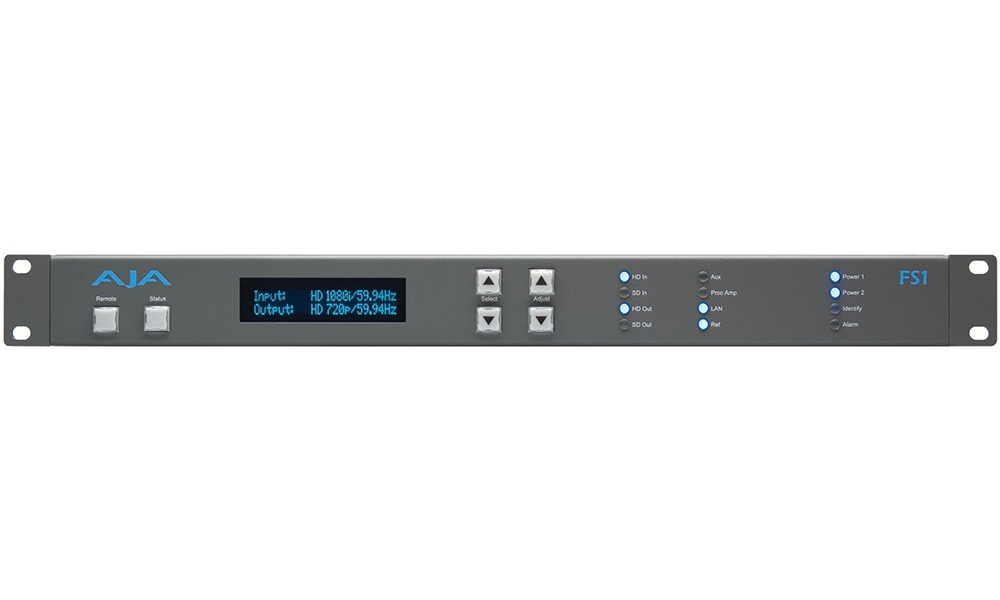

FS1 is a flexible frame synchroniser and high quality converter designed to mismatch signal types to establish a consistent format for post production or broadcast.

Featuring a flexible input, output, and control architecture, the FS1 Universal HD/SD Audio/ Video Frame Synchronizer and Converter can simultaneously work with both HD and SD video all in full 10-bit broadcast quality video and 24-bit audio. Supporting virtually any input or output, analogue or digital, HD or SD, FS1 can up or down convert between SD and HD, and provide simultaneous HD and SD outputs. Up, down, cross conversion between HD formats are also supported, with simultaneous output of both formats.

AJA’s powerful hardware conversion technology ensures the highest image quality for your productions. Key conversion features include:

  • SD/SD aspect ratio conversion
  • HD/HD cross-conversion (720p/1080i)
  • Up/down/cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronised)
  • HD cross-conversion with simultaneous down-converted SDI output

FS1 is loaded with comprehensive I/O that lets it handle the widest range of analog and digital signals – and convert between them.

Perfect for use in broadcast and post production environments, FS1 features Dual HD/SD-SDI inputs and outputs, comprehensive multi-channel audio connections and I/O for analog video equipment, including HD and SD component.

For audio, FS1 supports 8-channel AES, balanced analog, or 16-channel embedded audio with full flexibility and audio processing controls. You can choose from any of the 4 groups of embedded audio for 8-channel output on the AES or analog audio.

FS units are network ready and support SNMP monitoring and web-based remote control. Units can be connected to any Ethernet network via the built-in 10/100/1000MB Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs.

To integrate smoothly with the existing automation of a facility, FS1 can also receive external GPI commands to trigger a variety of functions, such as freezing an input source.

FS1 supports closed captioning and the conversion of closed captioning between SD and HD formats – including full conversion of CEA-608 captions to the CEA-708 standard. FS1 can preserve closed captioning even when converting between formats, removing the need to re-insert closed captions after conversion.

 Automatically sets Active Format Description information to match the converted signal. This means AFD information does not have to be inserted after conversion and provides accurate information for devices that understand AFD.

FS1 is designed to meet the demands of broadcast engineering and live event production while providing incredible flexibility. Select any of the various inputs for conversion and route to all outputs simultaneously.

Dual, redundant power supplies ensure uninterrupted power even in the event of a power supply failure.

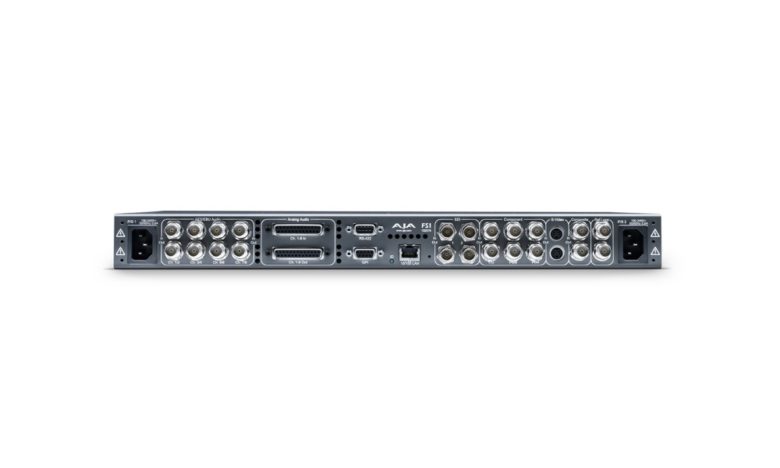

FS1 has a wide range of analog and digital inputs and outputs to allow integration into virtually any environment, featuring HD-SDI, analog component, composite and S-Video inputs and outputs and comprehensive embedded, digital and analog audio I/O with full routing capability.


Datasheet (912.04 KB)
