SOUNDCRAFT Ui12

12-input Remote-Controlled Digital Mixer

UI12

£304.17 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List

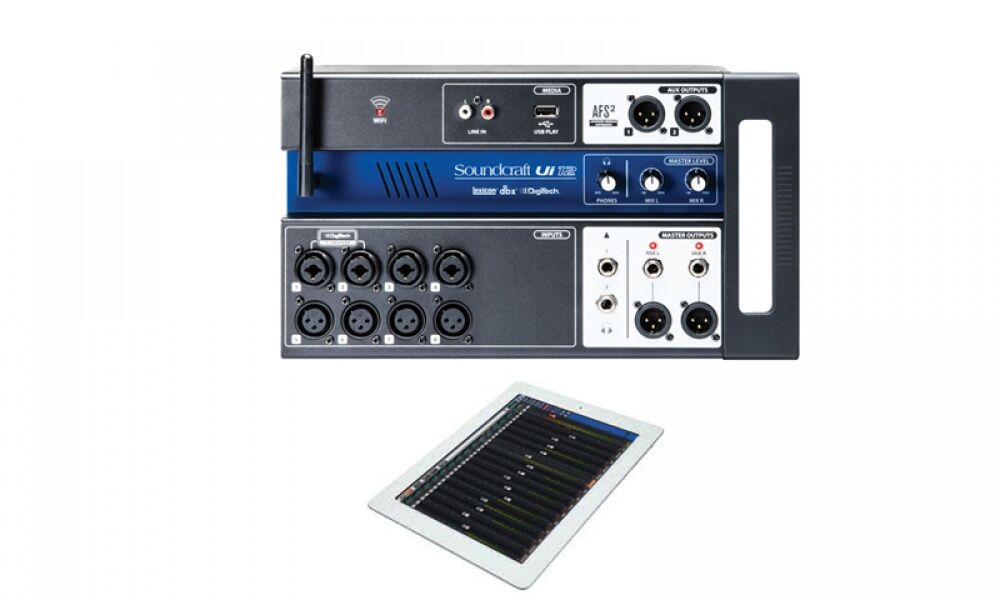

Soundcraft Ui12 is a remote-controlled digital mixers featuring an integrated, onboard Wi-Fi router and can be controlled via a tablet, PC or smartphone.

The Ui12 feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, it features built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.

Both mixers offer 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX busses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes. While security lockout features allow customisation of device access to only specific functions and mixes if needed. An independent network interface is offered for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.

The Ui12 also features four XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with two balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats.

• 12-input Remote-Controlled Digital Mixer
• Tablet/PC/Smartphone Controlled Digital Mixer
• Integrated Wi-Fi Router Onboard
• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
• Use up to 10 control devices (tablets, phones, PCs) simultaneously
• Legendary Harman Signal Processing from dbx, Digitech, and Lexicon
• Fully Recallable and Remote-Controlled Mic Gain and Phantom Power
• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
• 31-band Graphic EQ, Noise Gate, and Compressor on all outputs
• 120-band Real-Time Frequency Analyser (RTA) on inputs and outputs
• 3 dedicated Lexicon FX effects busses: Reverb, Delay, and Chorus
• Subgroups, Mute Groups, View Groups, and more mixer controls
• Show/Snapshot recall with channel safes and security lockout
• Independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet
• Floor-ready rugged chassis for live applications

Media

Datasheet (1.63 MB)
