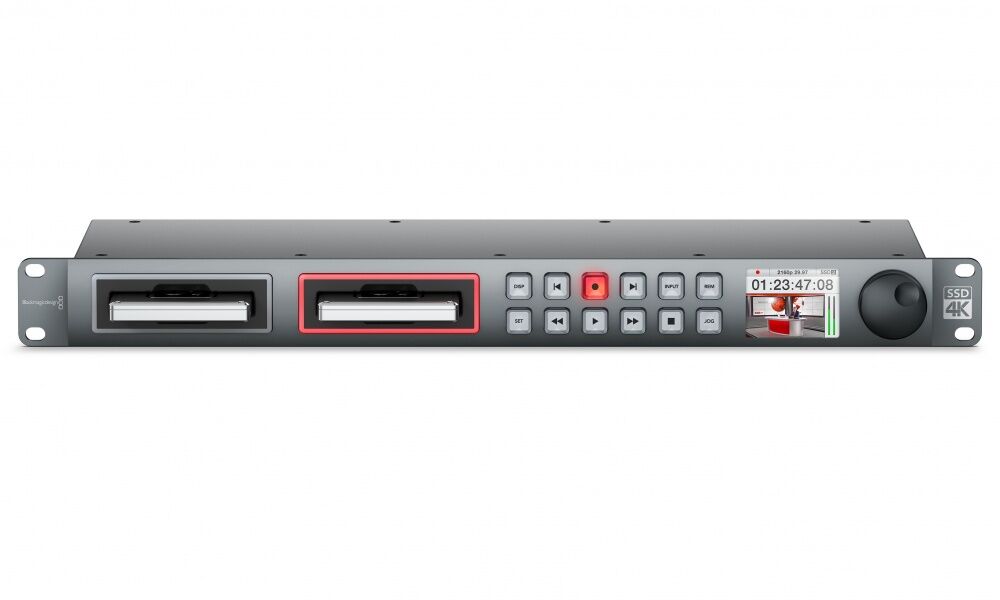

BLACKMAGIC DESIGN HyperDeck Studio Pro

Professional broadcast decks that use fast solid state disks!

BMD-HYPERD/ST/PRO2

£1,575.00 Price excludes VAT

Product lists can be submitted to HHB for a packaged quotation

Add item to Quote List
Add item to Quote List



HyperDeck Studio Pro is the ultimate in compatibility and technology, featuring a more advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats, plus HyperDeck Studio Pro includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck! Also includes 6G-SDI and Quad SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility. You even get built in Thunderbolt for computer capture and UltraScope software for live scopes!

SDI Video Inputs
1
SDI Video Outputs
4, Single Link or Quad Link.
SDI Rates
270Mb, 1.5G, 3G, 6G.
HDMI Video Inputs
1 x HDMI type A connector including Ultra HD 4K support.
HDMI Video Outputs
1 x HDMI type A connector including Ultra HD 4K support.
Analog Video Inputs
Y, B-Y, R-Y
Analog Video Outputs
Y, B-Y, R-Y
Analog Audio Inputs
2 x XLR connectors for professional balanced analog audio. 2 x RCA connectors for unbalanced analog audio from consumer equipment.
Analog Audio Outputs
2 x XLR connectors for professional balanced analog audio.
Timecode Connection
1 x XLR in and 1 x XLR out.
SDI Audio Inputs
16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
SDI Audio Outputs
16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Inputs
8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Outputs
8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
Reference Input
Tri-Sync or Black Burst.
Recorder Configuration
Front panel configurable or USB 2.0 high speed interface.
Computer Interface
1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.
